• Country
• Austria

• Manufacturer / Brand
• Philips - Österreich

• Year
• 1972 ?

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 205903

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 6

• Semiconductors

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Rec.Player+Audio.Amp+LS

• Power type and voltage
• Line / Batteries (any type) / 110; 127; 220; 240 / 6 x 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Power out
• 1.5 W (undistorted)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

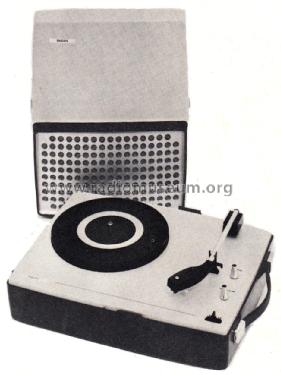

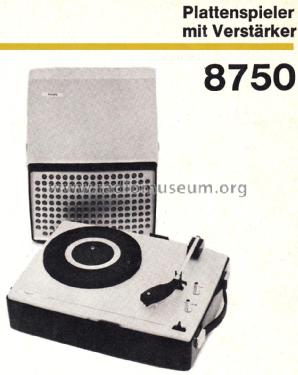

• Model: Plattenspieler mit Verstärker 8750 - Philips - Österreich

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 327 x 140 x 253 mm / 12.9 x 5.5 x 10 inch

• Notes
• Giradischi portatile monofonico. Velocità giri 33, 45, 78. Testine GP212, GP213.

• Net weight (2.2 lb = 1 kg)
• 3 kg / 6 lb 9.7 oz (6.608 lb)

• Source of data

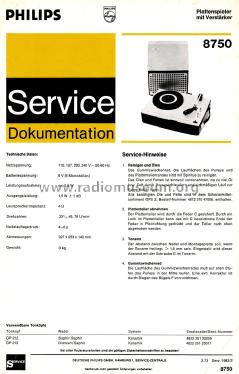

• -- Original-techn. papers.

• Author
• Model page created by Pasquale Baiocato. See "Data change" for further contributors.
