• Country
• Austria

• Manufacturer / Brand
• Philips - Österreich

• Year
• 1964 ??

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 186503

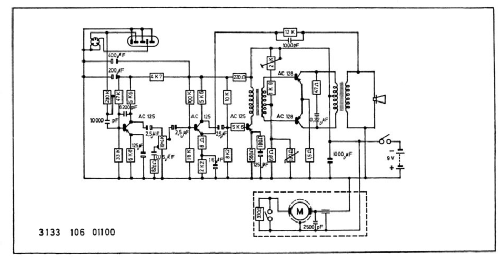

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 5

• Semiconductors
• AC125 AC125 AC125 AC128 AC128

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Rec.Player+Audio.Amp+LS

• Power type and voltage
• Dry Batteries / 6 ×1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 14 cm = 5.5 inch

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: AG4126W /00A - Philips - Österreich

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 318 x 158 x 243 mm / 12.5 x 6.2 x 9.6 inch

• Notes
• Speed 16, 33, 45 and 78 r/min. Cartridge Philips AG3310 to mikro- and normal-groove. Tone and volumcontrols.

• Net weight (2.2 lb = 1 kg)
• 3.3 kg / 7 lb 4.3 oz (7.269 lb)

• Source of data
• - - Data from my own collection

• Author
• Model page created by Eero Ukkola. See "Data change" for further contributors.
