• Country
• Austria

• Manufacturer / Brand
• Philips - Österreich

• Year
• 1966–1968

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 73818

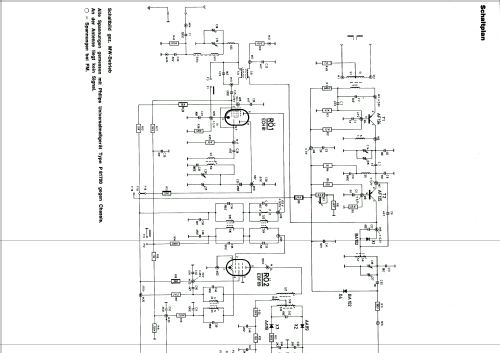

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 3

• Valves / Tubes
• ECH81 EBF89 ECL86

• Number of Transistors
• 2

• Semiconductors
• AF124 AF125

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz

• Tuned circuits
• 6 AM circuit(s)     9 FM circuit(s)

• Wave bands
• Broadcast (BC) and FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 110; 127; 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Power out
• 2.5 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Andante 03RB262 /00 - Philips - Österreich

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 380 x 170 x 160 mm / 15 x 6.7 x 6.3 inch

• Net weight (2.2 lb = 1 kg)
• 3 kg / 6 lb 9.7 oz (6.608 lb)

• Price in first year of sale
• 1,395.00 öS

• External source of data
• Gerät aus eigener Sammlung

• Source of data
• -- Original-techn. papers. / Radiokatalog Band 2, Ernst Erb

• Author
• Model page created by Wolfgang Bauer. See "Data change" for further contributors.
