• Country
• Austria

• Manufacturer / Brand
• Philips - Österreich

• Year
• 1964

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 30962

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 3

• Valves / Tubes
• ECH81 EBF89 ECL86

• Number of Transistors
• 2

• Semiconductors
• AF124 AF125

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz

• Tuned circuits
• 6 AM circuit(s)     9 FM circuit(s)

• Wave bands
• Broadcast (BC) and FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 110; 127; 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 13 cm = 5.1 inch

• Material
• Various materials

• from Radiomuseum.org

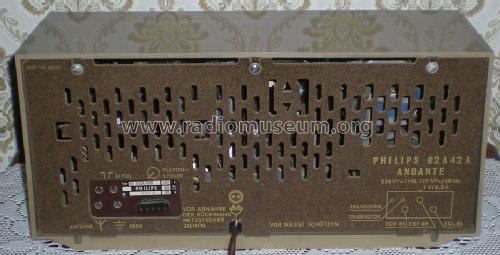

• Model: Andante B2A42A /00G /00D /00X - Philips - Österreich

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 375 x 175 x 160 mm / 14.8 x 6.9 x 6.3 inch

• Notes

• 3 Ausführungen:
  /00G = hellgrau;
  /00D = beige;
  /00X = hellblau.

• Net weight (2.2 lb = 1 kg)
• 3.1 kg / 6 lb 13.3 oz (6.828 lb)

• Price in first year of sale
• 1,250.00 ATS

• Source of data
• Radiokatalog Band 2, Ernst Erb

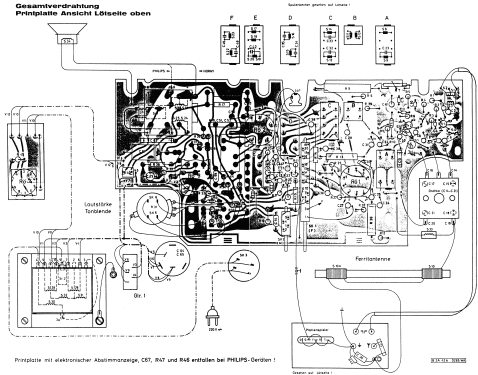

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Gerhard Heigl. See "Data change" for further contributors.
