- Country
- Netherlands
- Manufacturer / Brand
- Philips; Eindhoven (tubes international!); Miniwatt
- Year
- 1979
- Category
- Television- and Radio Receiver, perh. also + Rec. etc. (TV Radio)
- Radiomuseum.org ID
- 169632

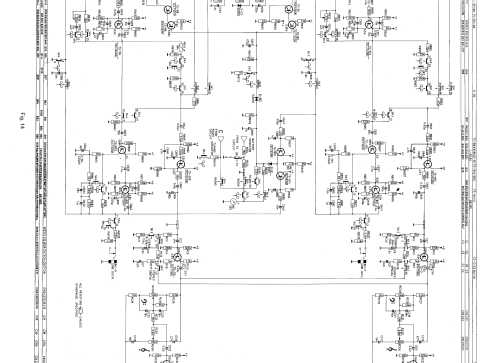

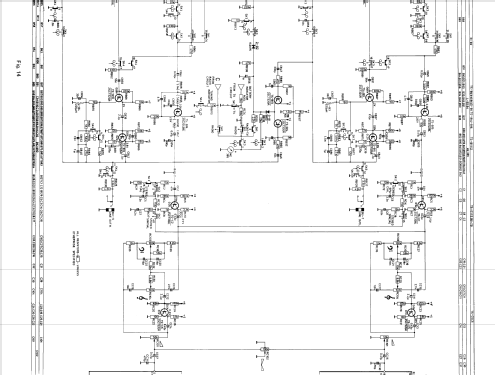

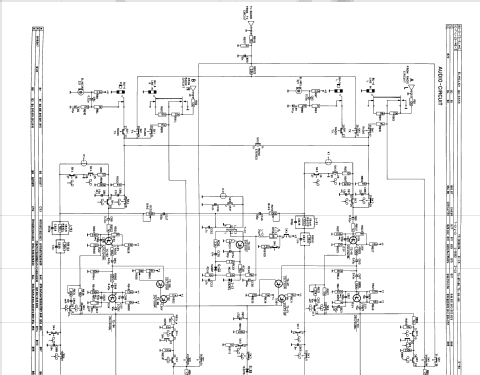

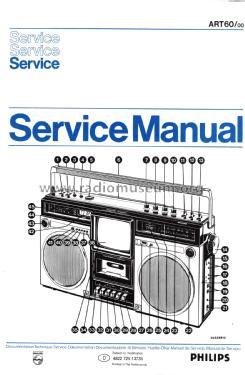

Bild aus dem Service Manual

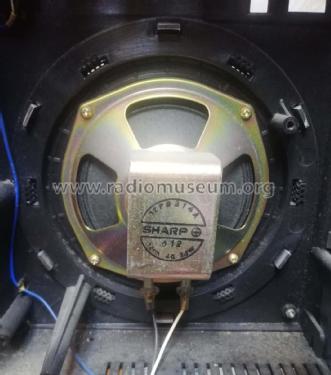

Lautsprecher Sharp 2x 3,5W
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 1
- Valves / Tubes
- 140CNB4
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Main principle
- Superheterodyne (common)
- Wave bands
- Wave Bands given in the notes.
- Details
- Cassette-Recorder or -Player
- Power type and voltage
- Line / Batteries (any type) / 220 / 12 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 17 cm = 6.7 inch
- Power out
- 7 W (unknown quality)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org

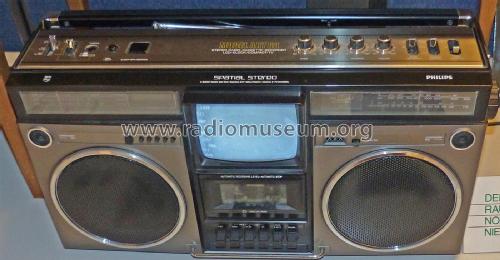

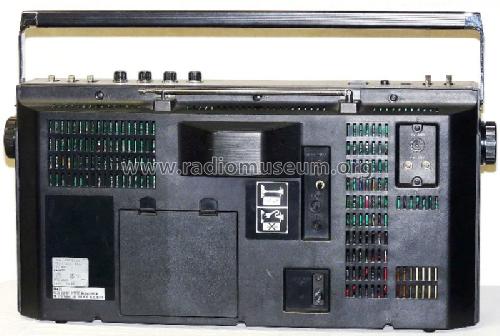

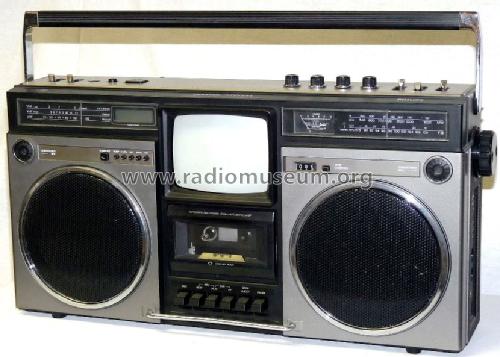

- Model: Art 60 /00 - Philips; Eindhoven tubes
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 570 x 280 x 210 mm / 22.4 x 11 x 8.3 inch
- Notes
- Stereo Radio-Cassette Recorder-LCD-Clock/Compact B/W TV. Bildschirmdiagonale 13 cm. Frequenzbereiche: VHF/L Ch 2..4, VHF/H CH 5..12, UHF CH 21..69, UKW 87,5..108 MHz, MW 540..1600 kHz. Eingebaute Electretmikrofone. Zählwerk. Level/Batt. Anzeige über Instrument. Quartz Clock mit Sleep-Timer Funktion. 5 tlg. Teleskopantenne (90 cm). ext. Antenne TV (60 Ohm). ext. Antenne FM 240 Ohm). Eingänge: 2 x Mic/Remote + Line. Ausgänge: Lautsprecher (L(R), Kopfhörer (Klinke 6,3 mm).
- Net weight (2.2 lb = 1 kg)
- 7.8 kg / 17 lb 2.9 oz (17.181 lb)
- Mentioned in
- Funkschau (21/1979, S. 1201 / Internationale Funkausstellung)
- Literature/Schematics (1)
- -- Original-techn. papers.
- Author
- Model page created by Museum Roggenhofer. See "Data change" for further contributors.
