B2F70U
Philips France; Paris
- Country
- France
- Manufacturer / Brand
- Philips France; Paris
- Year
- 1956 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 108640
Front view

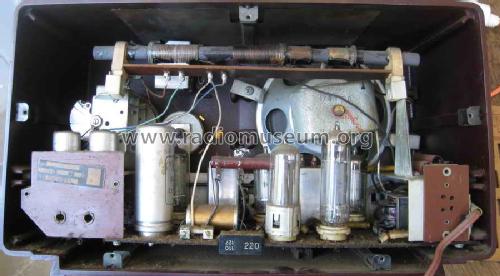

Inside view

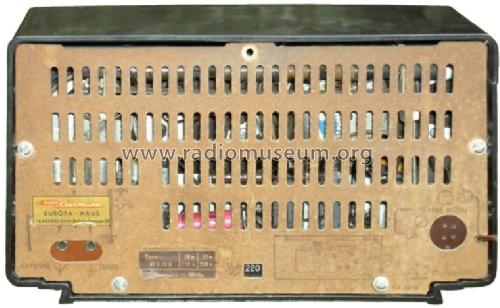

Back view
Chassis top view
Propriété actuelle de Patrick Sanseigne
B2F70U
B2F70U condensateur de filtrage changé
Circuit imprimé.
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast, Long Wave and Short Wave.
- Power type and voltage
- AC/DC-set / 110; 127; 220 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 11 cm = 4.3 inch
- Material
- Bakelite case
- from Radiomuseum.org
- Model: B2F70U - Philips France; Paris
- Shape
- Tablemodel without push buttons, Mantel/Midget/Compact up to 14
- Dimensions (WHD)
- 320 x 180 x 155 mm / 12.6 x 7.1 x 6.1 inch
- Net weight (2.2 lb = 1 kg)
- 2.9 kg / 6 lb 6.2 oz (6.388 lb)
- Source of data
- - - Data from my own collection
- Author
- Model page created by Karlheinz Gützlaff. See "Data change" for further contributors.
