B4S51A /00 /13

• Country
• Sweden

• Manufacturer / Brand
• Philips, Svenska AB, Stockholm

• Year
• 1963 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 98787

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• ECC85 ECH81 EF89 EBC81 EM84 EL86

• Number of Transistors

• Semiconductors
• OA79 OA79 BA102 B250C100

• Main principle
• Superheterodyne (common); ZF/IF 468/10700 kHz

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 110; 127; 220; 240 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6.5 inch = 16.5 cm

• Power out
• 2.5 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org
• Model: B4S51A /00 /13 - Philips, Svenska AB, Stockholm

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 550 x 182 x 165 mm / 21.7 x 7.2 x 6.5 inch

• Notes

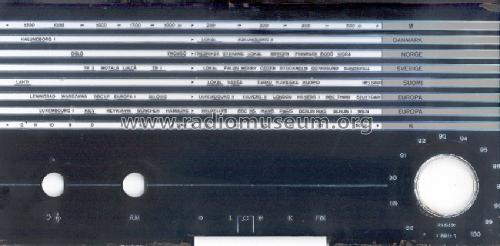

• Wavebands:

  • LW 250 - 160 kHz
  • MW 1500 - 600 kHz
  • SW 11.7 - 6.1 MHz
  • FM 100 - 87.5 MHz

  Differences between versions /00 and /13 are currently unknown. See also similar model 31RB560 /00.

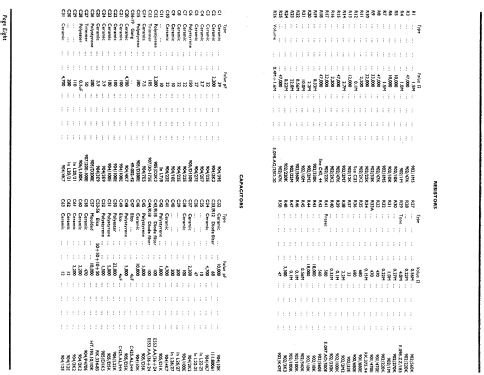

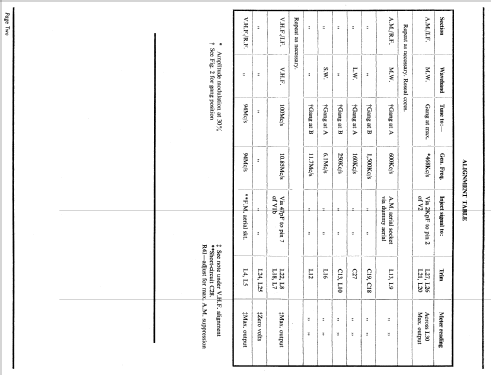

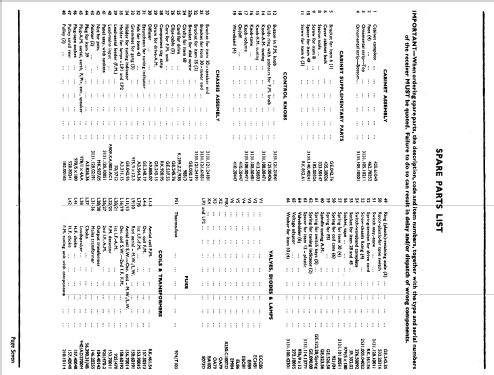

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Vitor Oliveira. See "Data change" for further contributors.
