• Country
• Austria

• Manufacturer / Brand
• Philips - Österreich

• Year
• 1949/1950

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 72966

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• ECH42 EAF42 EAF42 EL41 EM34 EL41 AZ1

• Main principle
• Superheterodyne (common); ZF/IF 452 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and more than two Short Wave bands.

• Power type and voltage
• Alternating Current supply (AC) / 100; 110; 125; 150; 200; 220; 240 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Wooden case

• from Radiomuseum.org

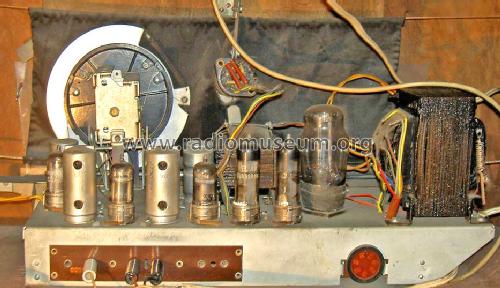

• Model: Belcanto BA691A - Philips - Österreich

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 520 x 370 x 230 mm / 20.5 x 14.6 x 9.1 inch

• Notes

• Parallelgerät zum Hornyphon Traviata W669A.
  Bandbreite schaltbar.

• Source of data
• Radiokatalog Band 2, Ernst Erb

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Wolfgang Bauer. See "Data change" for further contributors.
