• Country
• France

• Manufacturer / Brand
• Philips France; Paris

• Year
• 1954/1955

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 238372

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• UCH42 UF41 UBC41 UL41 UY41

• Main principle
• Superheterodyne (common)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and 2 x Short Wave.

• Power type and voltage
• Alternating Current supply (AC) / 117; 123; 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Power out
• 2 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: BF121A - Philips France; Paris

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Dimensions (WHD)
• 240 x 147 x 128 mm / 9.4 x 5.8 x 5 inch

• Notes

• Cadre ferroceptor. HP elliptique de 10 x 14 cm.

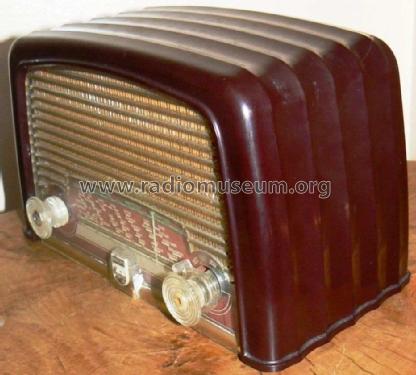

  Coffret en matière plastique, existe en 2 couleurs: bordeaux et ivoire. Livrable sur demande en mallette.

  Équivalent au Radiola RA152A. Même modèle en universal BF121U.

• Mentioned in
• -- Original prospect or advert (Dépliant Série Super-Magnétique 1955)

• Literature/Schematics (1)
• -- Original-techn. papers.
