BF241U /01 /02 /03

• Country
• France

• Manufacturer / Brand
• Philips France; Paris

• Year
• 1954/1955

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 170020

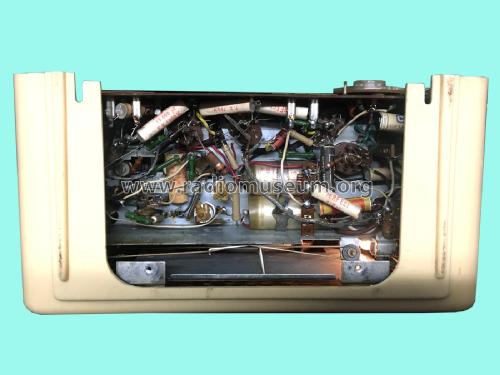

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• UCH42 UF41 UBC41 UL41 UY41

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and 2 x Short Wave.

• Power type and voltage
• AC/DC-set / 110; 127; 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 12 cm = 4.7 inch

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

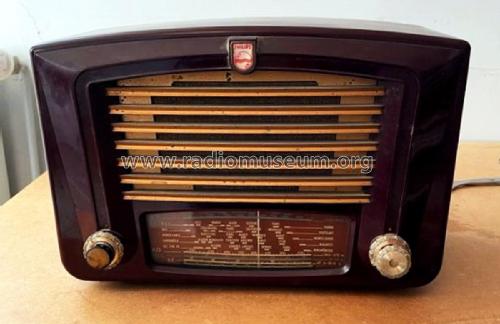

• Model: BF241U /01 /02 /03 - Philips France; Paris

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Dimensions (WHD)
• 290 x 190 x 145 mm / 11.4 x 7.5 x 5.7 inch

• Notes

• 4 gammes d'ondes: OC 16 à 51 m, BE 47,3 à 50,8 m, PO 185 à 572 m, GO 1050 à 1950 m. Cadre ferrocepteur. Tonalité 2 positions. Prise pick-up.

  Alimentation pour CA 110, 127, 220 V, 25 et 50 Hz; sur CC 110, 220 V.

  Coffret polystyrène bordeaux (/01), ivoire (/02), ou nacré (/03). Livrable sur demande en mallette.

  Équivalent au Radiola RA264U.

• Net weight (2.2 lb = 1 kg)
• 2.9 kg / 6 lb 6.2 oz (6.388 lb)

• Mentioned in
• -- Original prospect or advert (Dépliant Série Super-Magnétique 1955)

• Literature/Schematics (1)
• Le grand livre de la TSF (Doctsf Ref 2072)

• Literature/Schematics (2)
• -- Original-techn. papers.

• Author
• Model page created by Aglef Tröger. See "Data change" for further contributors.
