• Country
• France

• Manufacturer / Brand
• Philips France; Paris

• Year
• 1949

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 194773

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• UCH41 UAF41 UAF41 UL41 UY41

• Main principle
• Superheterodyne (common); ZF/IF 472 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• AC/DC-set / 110-125; 200-220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Metal case

• from Radiomuseum.org

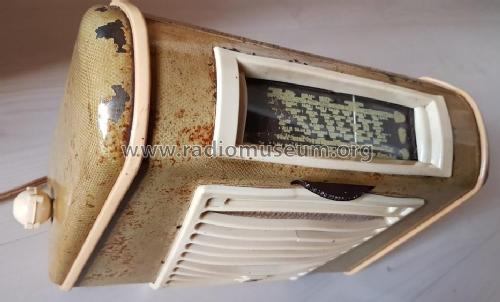

• Model: BF291U - Philips France; Paris

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 310 x 210 x 150 mm / 12.2 x 8.3 x 5.9 inch

• Notes
• Dial lamp: 8097D (19V/0,1A). Chassis similar to BF281U.

• Net weight (2.2 lb = 1 kg)
• 3.740 kg / 8 lb 3.8 oz (8.238 lb)

• Source of data
• -- Schematic

• Author
• Model page created by Antonio Martins-Pais. See "Data change" for further contributors.
