• Country
• France

• Manufacturer / Brand
• Philips France; Paris

• Year
• 1953

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 118101

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• UCH42 UF41 UBC41 UL41 UY41

• Main principle
• Superheterodyne (common); ZF/IF 452 kHz

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• Alternating Current supply (AC) / 110-127; 220 Volt

• Loudspeaker
• Ø 13 cm = 5.1 inch

• Material
• Bakelite case

• from Radiomuseum.org
• Model: BF332A - Philips France; Paris

• Shape
• Tablemodel, high profile (upright - NOT Cathedral nor decorative).

• Dimensions (WHD)
• 300 x 210 x 180 mm / 11.8 x 8.3 x 7.1 inch

• Notes

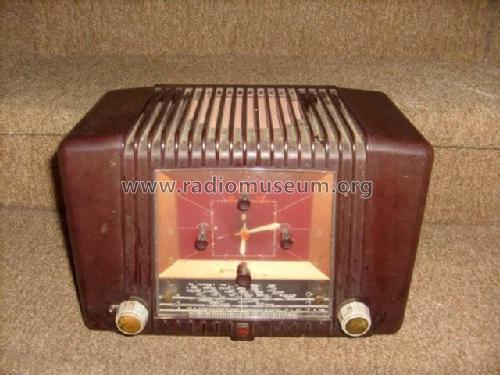

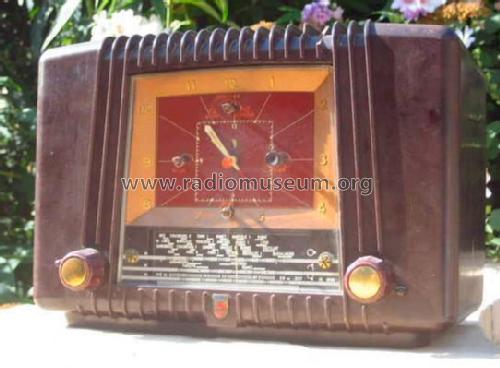

• With clock. Colours: brown, ivory and bordeaux.
  Left-sided switchable mains outlet for lighting.

• Net weight (2.2 lb = 1 kg)
• 3.3 kg / 7 lb 4.3 oz (7.269 lb)

• Price in first year of sale
• 27,400.00 FRF

• Source of data
• Le grand livre de la TSF

• Author
• Model page created by John Koster. See "Data change" for further contributors.
