• Country
• Great Britain (UK)

• Manufacturer / Brand
• Philips Electrical, Lamps, Industrial - Miniwatt; London

• Year
• 1951

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 202268

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• ECH42 EF41 EBC41 EL41 EM34 EZ40

• Main principle
• Superheterodyne (common); ZF/IF 470 kHz

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 145; 200; 220; 245 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 7 inch = 17.8 cm

• Material
• Bakelite case

• from Radiomuseum.org
• Model: 413A /15 - Philips Electrical, Lamps,

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 18.25 x 12 x 8.5 inch / 464 x 305 x 216 mm

• Notes

• An AC mains 3 band table radio housed in a bakelite case with printed wood effect. Coverage MW (1630 - 517kHz), LW (419.6 - 150kHz) and SW (18.2 - 5.9MHz). Sockets for extension loudspeaker and gramophone pickup input.

• Literature/Schematics (1)

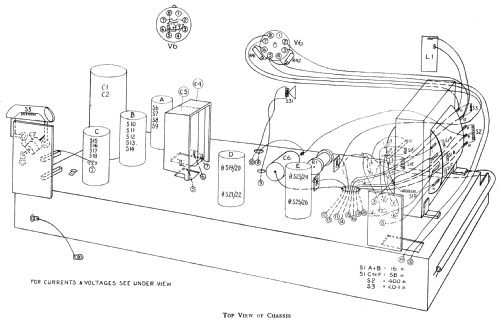

• - - Manufacturers Literature (Service manual Philips 413A Receiver)

• Author
• Model page created by Aglef Tröger. See "Data change" for further contributors.
