Boxer L3S22T Ch= T9A
Philips, Svenska AB, Stockholm
- Country
- Sweden
- Manufacturer / Brand
- Philips, Svenska AB, Stockholm
- Year
- 1963 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 345972
From my service documentation.

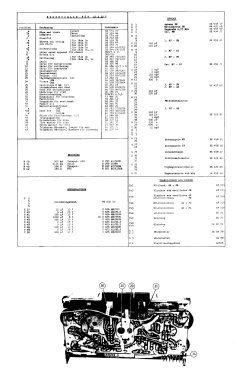

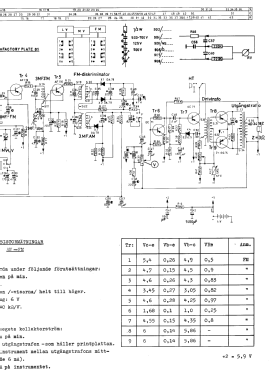

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 9
- Main principle
- Superheterodyne (common); ZF/IF 460/6750 kHz
- Wave bands
- Broadcast, Long Wave and FM or UHF.
- Power type and voltage
- Dry Batteries / 4 x 1.5 / 6 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
- Power out
- 0.3 W (max.)
- Material
- Leather / canvas / plastic - over other material
- from Radiomuseum.org
- Model: Boxer L3S22T Ch= T9A - Philips, Svenska AB, Stockholm
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 282 x 150 x 70 mm / 11.1 x 5.9 x 2.8 inch
- Notes
-
Sockets for ear phone and external antenna.
Same chassis as Philips L3S31T, Dux T930/T940 and Stern&Stern Conserton Handy B1925T.
Case: Genuine lether in colours chestnut brown, black or natural colour.
- Net weight (2.2 lb = 1 kg)
- 1.5 kg / 3 lb 4.9 oz (3.304 lb)
