• Year
  • 1954 ?
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 354258

 Technical Specifications

  • Number of Tubes
  • 6
  • Main principle
  • Superheterodyne (common); ZF/IF 452 kHz
  • Tuned circuits
  • 6 AM circuit(s)
  • Wave bands
  • Broadcast, Long Wave and 2 x Short Wave.
  • Power type and voltage
  • Alternating Current supply (AC) / 110; 127; 220; 240 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
  • Material
  • Wooden case
  • from Radiomuseum.org

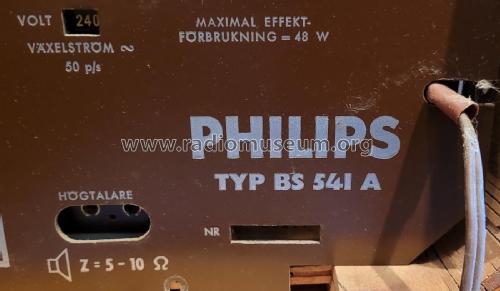

  • Model: BS541A - Philips, Svenska AB, Stockholm

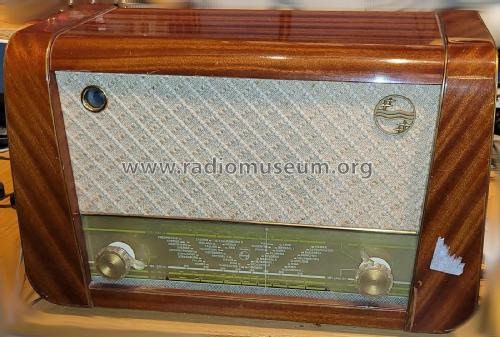

  • Shape
  • Tablemodel, low profile (big size).
  • Dimensions (WHD)
  • 400 x 260 x 190 mm / 15.7 x 10.2 x 7.5 inch
  • Notes
  • Built-in magnetic loop antenna for SW1 and SW2.
    Very similar to BS441A.


    SW1: 16,5-52 m, SW2: 49-186 m

  • Net weight (2.2 lb = 1 kg)
  • 6.5 kg / 14 lb 5.1 oz (14.317 lb)
  • Author
  • Model page created by Sverker Petersson. See "Data change" for further contributors.
