- Country
- Sweden
- Manufacturer / Brand
- Philips, Svenska AB, Stockholm
- Year
- 1949 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 187425
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Main principle
- Superheterodyne (common); ZF/IF 460 kHz; 2 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast, Long Wave and more than two Short Wave bands.
- Power type and voltage
- Alternating Current supply (AC) / 110-240 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 17 cm = 6.7 inch
- Material
- Wooden case
- from Radiomuseum.org

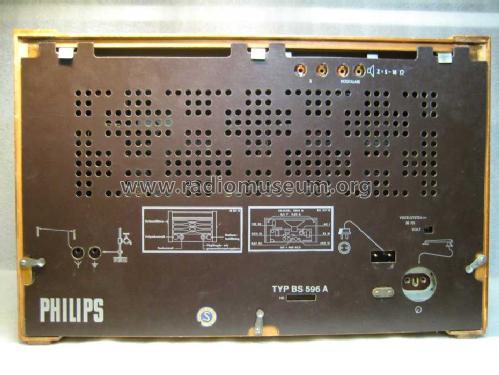

- Model: BS596A - Philips, Svenska AB, Stockholm
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 530 x 347 x 247 mm / 20.9 x 13.7 x 9.7 inch
- Notes
- SW-bands: 56-185m 39,5-51,5m 24,8-32,4m 20-26m 15,4-20,1m
- Net weight (2.2 lb = 1 kg)
- 10 kg / 22 lb 0.4 oz (22.026 lb)
- Source of data
- - - Data from my own collection
- Author
- Model page created by Eero Ukkola. See "Data change" for further contributors.
