BX690A

• Country
• France

• Manufacturer / Brand
• Philips France; Paris

• Year
• 1949 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 323272

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• ECH21 EAF42 EAF42 EL41 EM4 EL41 AZ1

• Main principle
• Superheterodyne (common); ZF/IF 452 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and more than two Short Wave bands.

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 145; 200; 220; 245 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Wooden case

• from Radiomuseum.org
• Model: BX690A - Philips France; Paris

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 630 x 395 x 255 mm / 24.8 x 15.6 x 10 inch

• Net weight (2.2 lb = 1 kg)
• 14.5 kg / 31 lb 15 oz (31.938 lb)

• Mentioned in

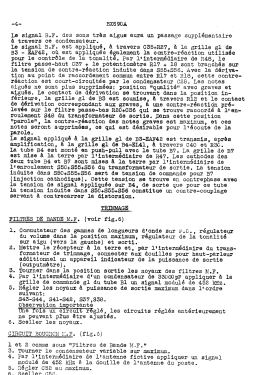

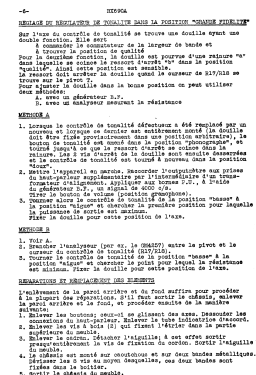

• -- Original-techn. papers.

• Author
• Model page created by Gidi Verheijen. See "Data change" for further contributors.

• Other Models

• Here you find 617 models, 555 with images and 335 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
