Car Radio 90AN163
Philips - Österreich
- Country
- Austria
- Manufacturer / Brand
- Philips - Österreich
- Year
- 1977 ??
- Category
- Car Radio, perhaps also + sound player/recorder
- Radiomuseum.org ID
- 166646

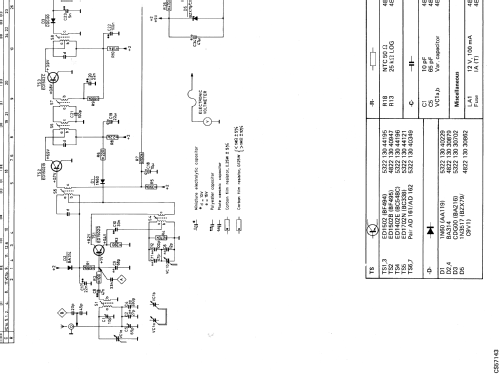

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 7
- Semiconductors
- Main principle
- Superheterodyne (common); ZF/IF 468 kHz
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast, Long Wave and FM or UHF.
- Power type and voltage
- Storage Battery for all (e.g. for car radios and amateur radios) / 12 Volt
- Loudspeaker
- - This model requires external speaker(s).
- Power out
- 5 W (unknown quality)
- Material
- Metal case
- from Radiomuseum.org
- Model: Car Radio 90AN163 - Philips - Österreich
- Shape
- Chassis only or for «building in»
- Dimensions (WHD)
- 162 x 41 x 76 mm / 6.4 x 1.6 x 3 inch
- Literature/Schematics (1)
- Dániel József, Autórádiók szervizkönyve, Bp. 1988.
- Author
- Model page created by Sándor Selyem-Tóth. See "Data change" for further contributors.
