Caretta L3S61T Ch= T18A
Philips, Svenska AB, Stockholm
- Country
- Sweden
- Manufacturer / Brand
- Philips, Svenska AB, Stockholm
- Year
- 1966 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 345825

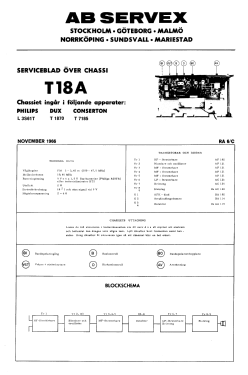

From my service documentation.
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 9
- Main principle
- Superheterodyne (common); ZF/IF 10850 kHz
- Wave bands
- FM Broadcast Band Only
- Power type and voltage
- Batteries / addl. power jack / 6 x 1.5 / 9 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Power out
- 2 W (max.)
- Material
- Leather / canvas / plastic - over other material
- from Radiomuseum.org
- Model: Caretta L3S61T Ch= T18A - Philips, Svenska AB, Stockholm
- Shape
- Portable set > 8 inch (also usable without mains)
- Notes
-
Sockets for battery eliminator BT2, earphone, external antenna and tape recorder.
To the radio comes with a car cassette BK18 with power amplifier BF18.
The case is black, grey or red.
The same chassis as Dux T1870 and Conserton T7185.
- Mentioned in
- -- Original-techn. papers.
- Author
- Model page created by Lars Nord. See "Data change" for further contributors.
