Cassette player 22AC028
Philips - Österreich
- Country
- Austria
- Manufacturer / Brand
- Philips - Österreich
- Year
- 1974 ??
- Category
- Sound/Video Recorder and/or Player
- Radiomuseum.org ID
- 205609

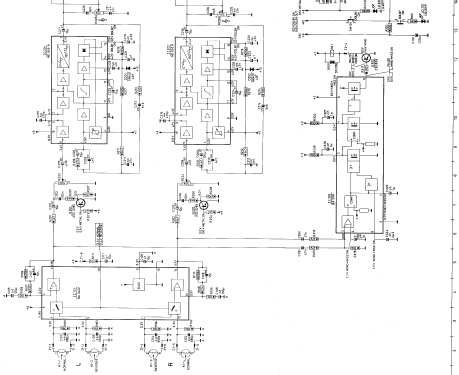

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 6
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Details
- Cassette-Recorder or -Player
- Power type and voltage
- Storage Battery for all (e.g. for car radios and amateur radios) / 14 Volt
- Loudspeaker
- - This model requires external speaker(s).
- Power out
- 20 W (unknown quality)
- Material
- Metal case
- from Radiomuseum.org
- Model: Cassette player 22AC028 - Philips - Österreich
- Shape
- Chassis only or for «building in»
- Dimensions (WHD)
- 140 x 44 x 160 mm / 5.5 x 1.7 x 6.3 inch
- Notes
- Sono presenti anche 10 diodi.
- Source of data
- -- Original-techn. papers.
- Author
- Model page created by Pasquale Baiocato. See "Data change" for further contributors.
