Cassetten-Recorder N2203M /22

• Country
• Austria

• Manufacturer / Brand
• Philips - Österreich

• Year
• 1972–1974

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 28852

• Picture

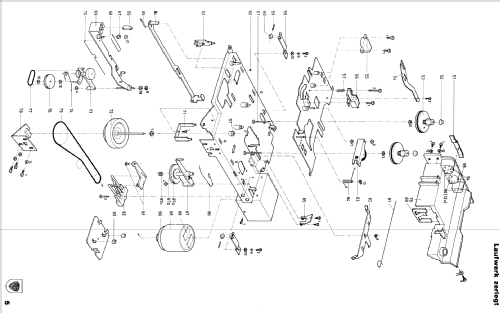

• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 11

• Semiconductors
• BC239 BC238 BC238 BC238 BC238 BC238 AC187 AC188 AC187 AC127 AC128

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Cassette-Recorder or -Player

• Power type and voltage
• Batteries / addl. power jack / C: 5 × 1.5 / 7,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6 cm = 2.4 inch

• Power out
• 0.5 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Cassetten-Recorder N2203M /22 - Philips - Österreich

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 115 x 55 x 200 mm / 4.5 x 2.2 x 7.9 inch

• Notes

• Inklusive externem Netzgerät N6505 für 220 V und Fernsteuermikrofon N8210. Übertragungsbereich 80-10000 Hz.
  In den VDRG-Handbüchern nur als N2203 Automatic geführt.

• Net weight (2.2 lb = 1 kg)
• 1.1 kg / 2 lb 6.8 oz (2.423 lb)

• External source of data
• Erb

• Source of data
• Handbuch VDRG 1972/1973 / Radiokatalog Band 2, Ernst Erb

• Mentioned in
• Handbuch VDRG 1973/1974

• Literature/Schematics (1)
• -- Original-techn. papers.
