Cassetten-Recorder EL3302A /00 10 Transistoren

Philips - Österreich

Data

Forum

Pictures

Collections

Country
Austria

Manufacturer / Brand
Philips - Österreich

Year
1968/1969

Category
Sound/Video Recorder and/or Player

Radiomuseum.org ID
28497

Schematics

Cassetten-Recorder EL3302A /00; Philips - Österreich (ID = 443471) R-Player — Philips - Österreich Cassetten-Recorder EL3302A /00 (3)

Cassetten-Recorder EL3302A /00; Philips - Österreich (ID = 443473) R-Player — Philips - Österreich Cassetten-Recorder EL3302A /00 (3)

Cassetten-Recorder EL3302A /00; Philips - Österreich (ID = 455964) R-Player — Philips - Österreich Cassetten-Recorder EL3302A /00 (3)

Cassetten-Recorder EL3302A /00; Philips - Österreich (ID = 443474) R-Player — Philips - Österreich Cassetten-Recorder EL3302A /00 (3)

Cassetten-Recorder EL3302A /00; Philips - Österreich (ID = 443475) R-Player — Philips - Österreich Cassetten-Recorder EL3302A /00 (3)

Cassetten-Recorder EL3302A /00; Philips - Österreich (ID = 455968) R-Player — Philips - Österreich Cassetten-Recorder EL3302A /00 (3)

Cassetten-Recorder EL3302A /00; Philips - Österreich (ID = 455969) R-Player — Philips - Österreich Cassetten-Recorder EL3302A /00 (3)

Cassetten-Recorder EL3302A /00; Philips - Österreich (ID = 1334556) R-Player — Philips - Österreich Cassetten-Recorder EL3302A /00 (3)

Cassetten-Recorder EL3302A /00; Philips - Österreich (ID = 1334557) R-Player — Philips - Österreich Cassetten-Recorder EL3302A /00 (3)

Cassetten-Recorder EL3302A /00; Philips - Österreich (ID = 1334558) R-Player — Philips - Österreich Cassetten-Recorder EL3302A /00 (3)

Cassetten-Recorder EL3302A /00; Philips - Österreich (ID = 1334560) R-Player — Philips - Österreich Cassetten-Recorder EL3302A /00 (3)

Cassetten-Recorder EL3302A /00; Philips - Österreich (ID = 1334561) R-Player — Philips - Österreich Cassetten-Recorder EL3302A /00 (3)

Cassetten-Recorder EL3302A /00; Philips - Österreich (ID = 1334563) R-Player — Philips - Österreich Cassetten-Recorder EL3302A /00 (3)

Cassetten-Recorder EL3302A /00; Philips - Österreich (ID = 155187) R-Player — Philips - Österreich Cassetten-Recorder EL3302A /00 (3)

Cassetten-Recorder EL3302A /00; Philips - Österreich (ID = 155191) R-Player — Philips - Österreich Cassetten-Recorder EL3302A /00 (3)

Cassetten-Recorder EL3302A /00; Philips - Österreich (ID = 155197) R-Player — Philips - Österreich Cassetten-Recorder EL3302A /00 (3)

Cassetten-Recorder EL3302A /00; Philips - Österreich (ID = 155192) R-Player — Philips - Österreich Cassetten-Recorder EL3302A /00 (3)

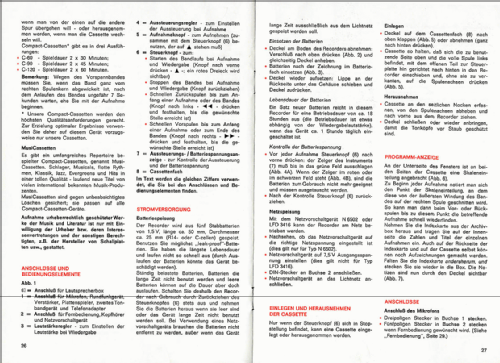

Cassetten-Recorder EL3302A /00; Philips - Österreich (ID = 155193) R-Player — Philips - Österreich Cassetten-Recorder EL3302A /00 (3)

Cassetten-Recorder EL3302A /00; Philips - Österreich (ID = 155194) R-Player — Philips - Österreich Cassetten-Recorder EL3302A /00 (3)

Cassetten-Recorder EL3302A /00; Philips - Österreich (ID = 155195) R-Player — Philips - Österreich Cassetten-Recorder EL3302A /00 (3)

Cassetten-Recorder EL3302A /00; Philips - Österreich (ID = 155196) R-Player — Philips - Österreich Cassetten-Recorder EL3302A /00 (3)

Cassetten-Recorder EL3302A /00; Philips - Österreich (ID = 1861433) R-Player — Philips - Österreich Cassetten-Recorder EL3302A /00 (3)

Cassetten-Recorder EL3302A /00; Philips - Österreich (ID = 2234952) R-Player — Philips - Österreich Cassetten-Recorder EL3302A /00 (1)

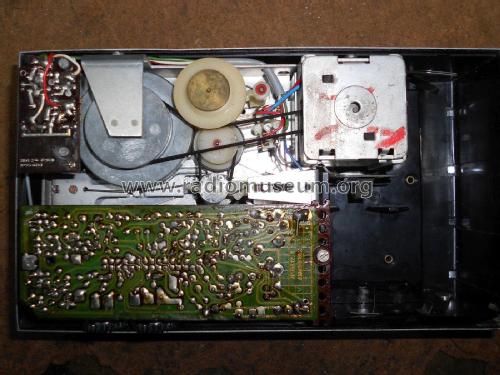

Cassetten-Recorder EL3302A /00; Philips - Österreich (ID = 2234956) R-Player — Philips - Österreich Cassetten-Recorder EL3302A /00 (1)

Cassetten-Recorder EL3302A /00; Philips - Österreich (ID = 2234954) R-Player — Philips - Österreich Cassetten-Recorder EL3302A /00 (1)

Cassetten-Recorder EL3302A /00; Philips - Österreich (ID = 2234955) R-Player — Philips - Österreich Cassetten-Recorder EL3302A /00 (1)

Cassetten-Recorder EL3302A /00; Philips - Österreich (ID = 2234953) R-Player — Philips - Österreich Cassetten-Recorder EL3302A /00 (1)

Cassetten-Recorder EL3302A /00; Philips - Österreich (ID = 2436857) R-Player — Philips - Österreich Cassetten-Recorder EL3302A /00 (1)

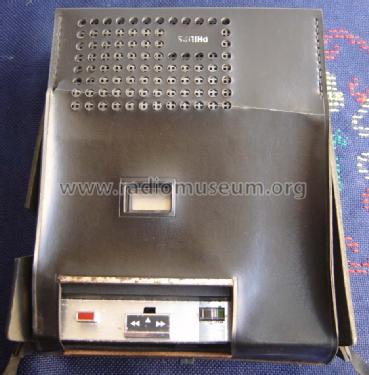

Philips 3302 from personal collection

Cassetten-Recorder EL3302A /00; Philips - Österreich (ID = 154071) R-Player — Philips - Österreich Cassetten-Recorder EL3302A /00 (1)
Dieses gerät is "made in Holland"

Cassetten-Recorder EL3302A /00; Philips - Österreich (ID = 105377) R-Player — Philips - Österreich Cassetten-Recorder EL3302A /00 (2)

Cassetten-Recorder EL3302A /00; Philips - Österreich (ID = 33685) R-Player — Philips - Österreich Cassetten-Recorder EL3302A /00 (2)

Cassetten-Recorder EL3302A /00; Philips - Österreich (ID = 33687) R-Player — Philips - Österreich Cassetten-Recorder EL3302A /00 (2)

Cassetten-Recorder EL3302A /00; Philips - Österreich (ID = 33688) R-Player — Philips - Österreich Cassetten-Recorder EL3302A /00 (2)

Cassetten-Recorder EL3302A /00; Philips - Österreich (ID = 154072) R-Player — Philips - Österreich Cassetten-Recorder EL3302A /00 (1)
Dieses gerät is "made in Holland"

Cassetten-Recorder EL3302A /00; Philips - Österreich (ID = 154073) R-Player — Philips - Österreich Cassetten-Recorder EL3302A /00 (1)

Cassetten-Recorder EL3302A /00; Philips - Österreich (ID = 154075) R-Player — Philips - Österreich Cassetten-Recorder EL3302A /00 (1)

Cassetten-Recorder EL3302A /00; Philips - Österreich (ID = 1013734) R-Player — Philips - Österreich Cassetten-Recorder EL3302A /00 (1)

Cassetten-Recorder EL3302A /00; Philips - Österreich (ID = 1013735) R-Player — Philips - Österreich Cassetten-Recorder EL3302A /00 (1)

Cassetten-Recorder EL3302A /00; Philips - Österreich (ID = 1013736) R-Player — Philips - Österreich Cassetten-Recorder EL3302A /00 (1)

Cassetten-Recorder EL3302A /00; Philips - Österreich (ID = 1013737) R-Player — Philips - Österreich Cassetten-Recorder EL3302A /00 (1)

Cassetten-Recorder EL3302A /00; Philips - Österreich (ID = 1013738) R-Player — Philips - Österreich Cassetten-Recorder EL3302A /00 (1)

Cassetten-Recorder EL3302A /00; Philips - Österreich (ID = 1505550) R-Player — Philips - Österreich Cassetten-Recorder EL3302A /00 (1)

Cassetten-Recorder EL3302A /00; Philips - Österreich (ID = 1505551) R-Player — Philips - Österreich Cassetten-Recorder EL3302A /00 (1)

Cassetten-Recorder EL3302A /00; Philips - Österreich (ID = 2054418) R-Player — Philips - Österreich Cassetten-Recorder EL3302A /00 (1)

Cassetten-Recorder EL3302A /00; Philips - Österreich (ID = 2054419) R-Player — Philips - Österreich Cassetten-Recorder EL3302A /00 (1)

Cassetten-Recorder EL3302A /00; Philips - Österreich (ID = 2054420) R-Player — Philips - Österreich Cassetten-Recorder EL3302A /00 (1)

Cassetten-Recorder EL3302A /00; Philips - Österreich (ID = 2054421) R-Player — Philips - Österreich Cassetten-Recorder EL3302A /00 (1)

Cassetten-Recorder EL3302A /00; Philips - Österreich (ID = 2054422) R-Player — Philips - Österreich Cassetten-Recorder EL3302A /00 (1)

Cassetten-Recorder EL3302A /00; Philips - Österreich (ID = 2566288) R-Player — Philips - Österreich Cassetten-Recorder EL3302A /00 (1)

Cassetten-Recorder EL3302A /00; Philips - Österreich (ID = 2566289) R-Player — Philips - Österreich Cassetten-Recorder EL3302A /00 (1)

Cassetten-Recorder EL3302A /00; Philips - Österreich (ID = 2716004) R-Player — Philips - Österreich Cassetten-Recorder EL3302A /00 (1)

Click on the schematic thumbnail to request the schematic as a free document.

Technical Specifications

Number of Transistors
10

Semiconductors
AC125 AC125 AC125 AC126 AC126 AC128 AC127 AC125 AC128 AC127

Main principle
Audio-Amplification

Details
Cassette-Recorder or -Player

Power type and voltage
Dry Batteries / C: 5 x 1,5 / 7,5 Volt

Loudspeaker
Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical / Ø 6 cm = 2.4 inch

Power out
0.4 W (unknown quality)

Material
Plastics (no bakelite or catalin)

from Radiomuseum.org
Model: Cassetten-Recorder EL3302A /00 [10 Transistoren] - Philips - Österreich

Shape
Portable set > 8 inch (also usable without mains)

Dimensions (WHD)
115 x 55 x 200 mm / 4.5 x 2.2 x 7.9 inch

Notes
2 Ausführungen siehe Schaltpläne.
Originalmikrofon: EL3797 .
Passende Autohalterung: N6705 .
Passendes Netzgerät: EL 3786/00.

Pluspol an Masse.

Net weight (2.2 lb = 1 kg)
1.1 kg / 2 lb 6.8 oz (2.423 lb)

External source of data
Erb

Source of data
Handbuch VDRG 1971/1972 / Radiokatalog Band 2, Ernst Erb

Literature/Schematics (1)
-- Original-techn. papers.
