• Country
• Austria

• Manufacturer / Brand
• Philips - Österreich

• Year
• 1968

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 237051

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 10

• Semiconductors
• AC125 AC125 AC125 AC126 AC126 AC128 AC127 AC125 AC128 AC127

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Cassette-Recorder or -Player

• Power type and voltage
• Batteries / addl. power jack / C: 5 x 1,5 / 7,5 Volt

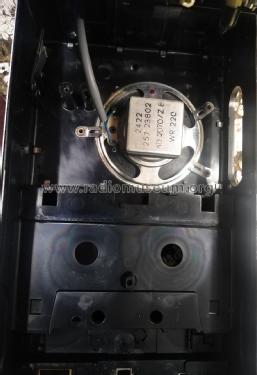

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

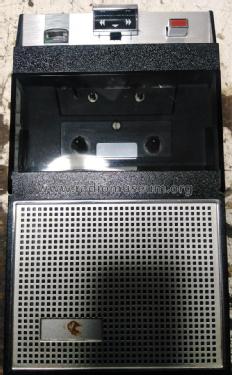

• Model: Cassetten-Recorder EL3302A /00P - Philips - Österreich

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 115 x 55 x 200 mm / 4.5 x 2.2 x 7.9 inch

• Notes

• Batterien des Typs " Baby ".

• Author
• Model page created by Arpad Roth † 27.3.17. See "Data change" for further contributors.
