Kassettenrekorder N2202/ 00/ 22

• Country
• Austria

• Manufacturer / Brand
• Philips - Österreich

• Year
• 1970–1972

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 28496

• Picture

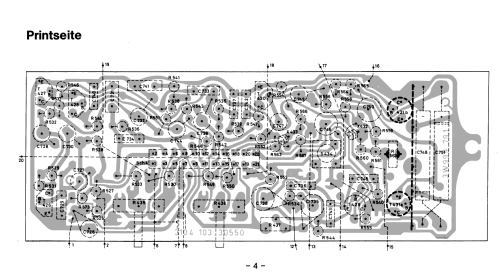

• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 9

• Semiconductors

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Cassette-Recorder or -Player

• Power type and voltage
• Dry Batteries / 5 × 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6 cm = 2.4 inch

• Power out
• 0.4 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Kassettenrekorder N2202/ 00/ 22 - Philips - Österreich

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 115 x 55 x 200 mm / 4.5 x 2.2 x 7.9 inch

• Notes

• Netzbetrieb mit zusätzlichem Netzteil möglich.
  In den VDRG-Handbüchern mal mit, mal ohne "N" geführt.
  Produktion in Holland und Österreich.

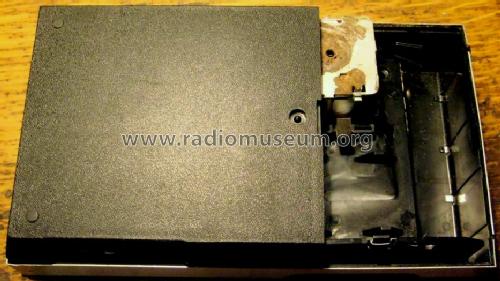

  Batterien vom Typ "Baby".

• Net weight (2.2 lb = 1 kg)
• 1.2 kg / 2 lb 10.3 oz (2.643 lb)

• Price in first year of sale
• 198.00 DM

• External source of data
• Erb

• Source of data
• Handbuch VDRG 1970/1971 / Radiokatalog Band 2, Ernst Erb

• Literature/Schematics (1)
• -- Original-techn. papers.
