• Country
• Austria

• Manufacturer / Brand
• Philips - Österreich

• Year
• 1983/1984

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 181116

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 7

• Semiconductors
• BF495 BF495 BC548 BF495 BF495 BF495 BF495 TDA1012

• Main principle
• Superheterodyne (common); ZF/IF 468/10700 kHz

• Wave bands
• Broadcast (BC) and FM or UHF.

• Details
• Cassette-Recorder or -Player

• Power type and voltage
• Line / Batteries (any type) / 220-240 / 5 x 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch

• Power out
• 0.8 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: 2 Band Radio Cassette Recorder D7030 /00 - Philips - Österreich

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 287 x 170 x 78 mm / 11.3 x 6.7 x 3.1 inch

• Notes

• Long Life Heads -

  Functions:
  Play - Stop - Ffwd - Rewind - Record - Eject - Cue - Automatic Recording Level Control - Full Automatic Stop - Automatic Frequency Control (AFC) - Line out

  Internal front microphone - External antenna - Transport handle.

  Type of the cassette recorder : "RT-1 or RT-8".

• Net weight (2.2 lb = 1 kg)
• 0.750 kg / 1 lb 10.4 oz (1.652 lb)

• Mentioned in

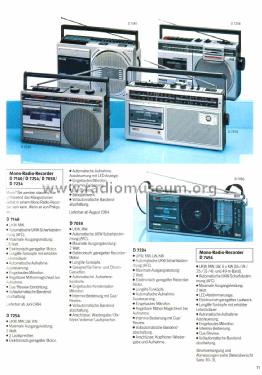

• -- Original prospect or advert (Philips Katalog 1983 und 1984)

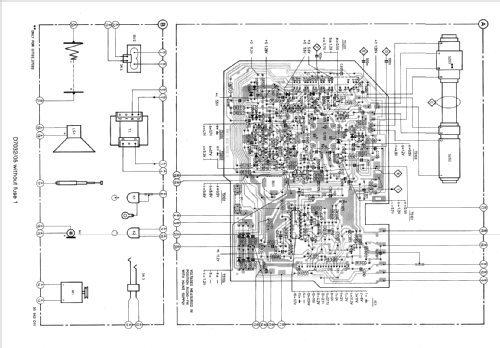

• Literature/Schematics (1)

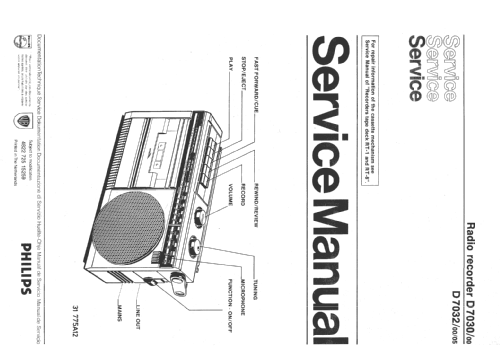

• -- Original-techn. papers.

• Author
• Model page created by Wolfgang Bauer. See "Data change" for further contributors.
