Synthesized World Receiver D2935 PLL

Philips; Eindhoven (tubes international!); Miniwatt

Daten

Forum

Bilder

Sammlungen

Land
Niederlande

Hersteller / Marke
Philips; Eindhoven (tubes international!); Miniwatt

Jahr
1984–1989

Kategorie
Rundfunkempfänger (Radio - oder Tuner nach WW2)

Radiomuseum.org ID
74710

Bilder
Schaltpläne

Synthesized World Receiver D2935 PLL; Philips; Eindhoven (ID = 280184) Radio — Philips; Eindhoven Synthesized World Receiver D2935 PLL (3)

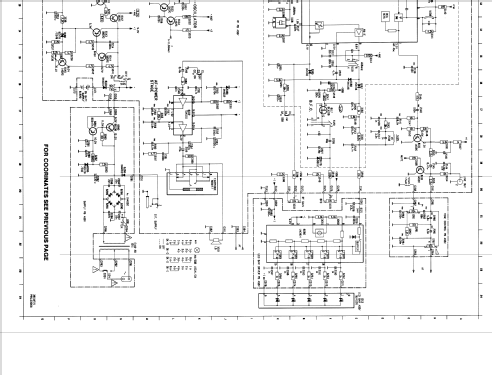

Synthesized World Receiver D2935 PLL; Philips; Eindhoven (ID = 280185) Radio — Philips; Eindhoven Synthesized World Receiver D2935 PLL (3)

Synthesized World Receiver D2935 PLL; Philips; Eindhoven (ID = 1973903) Radio — Philips; Eindhoven Synthesized World Receiver D2935 PLL (3)

Synthesized World Receiver D2935 PLL; Philips; Eindhoven (ID = 1973904) Radio — Philips; Eindhoven Synthesized World Receiver D2935 PLL (3)

Synthesized World Receiver D2935 PLL; Philips; Eindhoven (ID = 1973905) Radio — Philips; Eindhoven Synthesized World Receiver D2935 PLL (3)

Synthesized World Receiver D2935 PLL; Philips; Eindhoven (ID = 1973906) Radio — Philips; Eindhoven Synthesized World Receiver D2935 PLL (3)

Synthesized World Receiver D2935 PLL; Philips; Eindhoven (ID = 1973907) Radio — Philips; Eindhoven Synthesized World Receiver D2935 PLL (3)

Synthesized World Receiver D2935 PLL; Philips; Eindhoven (ID = 1973908) Radio — Philips; Eindhoven Synthesized World Receiver D2935 PLL (3)

Synthesized World Receiver D2935 PLL; Philips; Eindhoven (ID = 1973909) Radio — Philips; Eindhoven Synthesized World Receiver D2935 PLL (3)

Synthesized World Receiver D2935 PLL; Philips; Eindhoven (ID = 1973910) Radio — Philips; Eindhoven Synthesized World Receiver D2935 PLL (3)

Synthesized World Receiver D2935 PLL; Philips; Eindhoven (ID = 1973911) Radio — Philips; Eindhoven Synthesized World Receiver D2935 PLL (3)

Synthesized World Receiver D2935 PLL; Philips; Eindhoven (ID = 1973912) Radio — Philips; Eindhoven Synthesized World Receiver D2935 PLL (3)

Synthesized World Receiver D2935 PLL; Philips; Eindhoven (ID = 1973913) Radio — Philips; Eindhoven Synthesized World Receiver D2935 PLL (3)

Synthesized World Receiver D2935 PLL; Philips; Eindhoven (ID = 1973914) Radio — Philips; Eindhoven Synthesized World Receiver D2935 PLL (3)

Synthesized World Receiver D2935 PLL; Philips; Eindhoven (ID = 1973915) Radio — Philips; Eindhoven Synthesized World Receiver D2935 PLL (3)

Synthesized World Receiver D2935 PLL; Philips; Eindhoven (ID = 1973916) Radio — Philips; Eindhoven Synthesized World Receiver D2935 PLL (3)

Synthesized World Receiver D2935 PLL; Philips; Eindhoven (ID = 1973917) Radio — Philips; Eindhoven Synthesized World Receiver D2935 PLL (3)

Synthesized World Receiver D2935 PLL; Philips; Eindhoven (ID = 1973918) Radio — Philips; Eindhoven Synthesized World Receiver D2935 PLL (3)

Synthesized World Receiver D2935 PLL; Philips; Eindhoven (ID = 1973919) Radio — Philips; Eindhoven Synthesized World Receiver D2935 PLL (3)

Synthesized World Receiver D2935 PLL; Philips; Eindhoven (ID = 1973920) Radio — Philips; Eindhoven Synthesized World Receiver D2935 PLL (3)

Synthesized World Receiver D2935 PLL; Philips; Eindhoven (ID = 1973921) Radio — Philips; Eindhoven Synthesized World Receiver D2935 PLL (3)

Synthesized World Receiver D2935 PLL; Philips; Eindhoven (ID = 1973922) Radio — Philips; Eindhoven Synthesized World Receiver D2935 PLL (3)

Synthesized World Receiver D2935 PLL; Philips; Eindhoven (ID = 1973923) Radio — Philips; Eindhoven Synthesized World Receiver D2935 PLL (3)

Synthesized World Receiver D2935 PLL; Philips; Eindhoven (ID = 1973924) Radio — Philips; Eindhoven Synthesized World Receiver D2935 PLL (3)

Synthesized World Receiver D2935 PLL; Philips; Eindhoven (ID = 1973925) Radio — Philips; Eindhoven Synthesized World Receiver D2935 PLL (3)

Synthesized World Receiver D2935 PLL; Philips; Eindhoven (ID = 1973926) Radio — Philips; Eindhoven Synthesized World Receiver D2935 PLL (3)

Synthesized World Receiver D2935 PLL; Philips; Eindhoven (ID = 2513480) Radio — Philips; Eindhoven Synthesized World Receiver D2935 PLL (3)

Synthesized World Receiver D2935 PLL; Philips; Eindhoven (ID = 2513488) Radio — Philips; Eindhoven Synthesized World Receiver D2935 PLL (3)

Synthesized World Receiver D2935 PLL; Philips; Eindhoven (ID = 2513489) Radio — Philips; Eindhoven Synthesized World Receiver D2935 PLL (3)

Synthesized World Receiver D2935 PLL; Philips; Eindhoven (ID = 2042210) Radio — Philips; Eindhoven Synthesized World Receiver D2935 PLL (1)

Synthesized World Receiver D2935 PLL; Philips; Eindhoven (ID = 83747) Radio — Philips; Eindhoven Synthesized World Receiver D2935 PLL (1)
improved version - blauer Netzschalter

Synthesized World Receiver D2935 PLL; Philips; Eindhoven (ID = 226595) Radio — Philips; Eindhoven Synthesized World Receiver D2935 PLL (1)
Older version: grey power button.

Synthesized World Receiver D2935 PLL; Philips; Eindhoven (ID = 226596) Radio — Philips; Eindhoven Synthesized World Receiver D2935 PLL (1)
Older version: grey power button.

Synthesized World Receiver D2935 PLL; Philips; Eindhoven (ID = 1072452) Radio — Philips; Eindhoven Synthesized World Receiver D2935 PLL (1)

Synthesized World Receiver D2935 PLL; Philips; Eindhoven (ID = 1072459) Radio — Philips; Eindhoven Synthesized World Receiver D2935 PLL (1)

Synthesized World Receiver D2935 PLL; Philips; Eindhoven (ID = 1215038) Radio — Philips; Eindhoven Synthesized World Receiver D2935 PLL (1)

Synthesized World Receiver D2935 PLL; Philips; Eindhoven (ID = 1215042) Radio — Philips; Eindhoven Synthesized World Receiver D2935 PLL (1)
RF unit part 2 (BFO,RF gain )

Synthesized World Receiver D2935 PLL; Philips; Eindhoven (ID = 1218632) Radio — Philips; Eindhoven Synthesized World Receiver D2935 PLL (1)

Synthesized World Receiver D2935 PLL; Philips; Eindhoven (ID = 1218633) Radio — Philips; Eindhoven Synthesized World Receiver D2935 PLL (1)
Rear

Synthesized World Receiver D2935 PLL; Philips; Eindhoven (ID = 1218648) Radio — Philips; Eindhoven Synthesized World Receiver D2935 PLL (1)
Internal view

Synthesized World Receiver D2935 PLL; Philips; Eindhoven (ID = 1218667) Radio — Philips; Eindhoven Synthesized World Receiver D2935 PLL (1)
Rear (arrière)

Synthesized World Receiver D2935 PLL; Philips; Eindhoven (ID = 1218862) Radio — Philips; Eindhoven Synthesized World Receiver D2935 PLL (1)

Synthesized World Receiver D2935 PLL; Philips; Eindhoven (ID = 2562314) Radio — Philips; Eindhoven Synthesized World Receiver D2935 PLL (1)

Synthesized World Receiver D2935 PLL; Philips; Eindhoven (ID = 2562315) Radio — Philips; Eindhoven Synthesized World Receiver D2935 PLL (1)

Synthesized World Receiver D2935 PLL; Philips; Eindhoven (ID = 2562317) Radio — Philips; Eindhoven Synthesized World Receiver D2935 PLL (1)

Synthesized World Receiver D2935 PLL; Philips; Eindhoven (ID = 2562318) Radio — Philips; Eindhoven Synthesized World Receiver D2935 PLL (1)

Synthesized World Receiver D2935 PLL; Philips; Eindhoven (ID = 2562319) Radio — Philips; Eindhoven Synthesized World Receiver D2935 PLL (1)

Synthesized World Receiver D2935 PLL; Philips; Eindhoven (ID = 2562320) Radio — Philips; Eindhoven Synthesized World Receiver D2935 PLL (1)

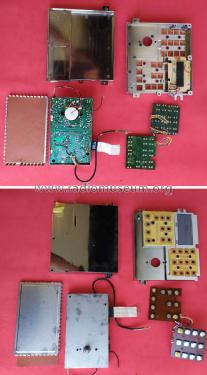

Synthesized World Receiver D2935 PLL; Philips; Eindhoven (ID = 2562321) Radio — Philips; Eindhoven Synthesized World Receiver D2935 PLL (1)

Synthesized World Receiver D2935 PLL; Philips; Eindhoven (ID = 2562323) Radio — Philips; Eindhoven Synthesized World Receiver D2935 PLL (1)

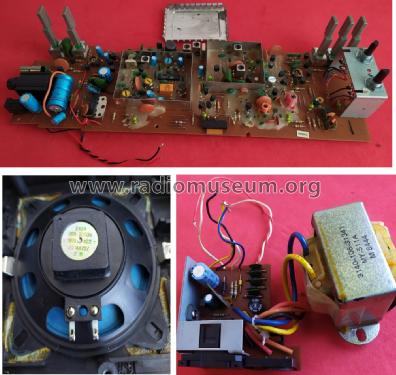

Synthesized World Receiver D2935 PLL; Philips; Eindhoven (ID = 2562324) Radio — Philips; Eindhoven Synthesized World Receiver D2935 PLL (1)

Synthesized World Receiver D2935 PLL; Philips; Eindhoven (ID = 2967961) Radio — Philips; Eindhoven Synthesized World Receiver D2935 PLL (1)

Klicken Sie auf den Schaltplanausschnitt, um diesen kostenlos als Dokument anzufordern.

Technische Daten

Anzahl Transistoren
Halbleiter vorhanden.

Halbleiter

Hauptprinzip
Super mit Mehrfachmischung; ZF/IF 55000/468 kHz

Wellenbereiche
Langwelle, Mittelwelle, Kurzwelle und UKW.

Betriebsart / Volt
Netz- / Batteriespeisung / 110/220 Volt

Lautsprecher
Dynamischer LS, keine Erregerspule (permanentdynamisch) / Ø 11.5 cm = 4.5 inch

Material
Plastikgehäuse (nicht Bakelit), Thermoplast

von Radiomuseum.org
Modell: Synthesized World Receiver D2935 PLL - Philips; Eindhoven tubes

Form
Reisegerät > 20 cm (netzunabhängig betreibbar)

Abmessungen (BHT)
320 x 180 x 80 mm / 12.6 x 7.1 x 3.1 inch

Bemerkung
coverage 146 - 29999 kHz (german version "/2" 146 - 26100 kHz), AM/SSB with BFO, digital frequency readout, direct frequency keypad entry, clock/timer. Older version: grey power button. Improved version: (11/1996) blue power button, narrow bandwith filter. In USA sold under Magnavox-label.

As seen in published pictures, there are two versions of front panel styling afecting the Power on/off and Dial light knobs. Original version from 1984 sports small knobs, while the 1987-march-25 upwards version uses large knobs.

Nettogewicht
3.2 kg / 7 lb 0.8 oz (7.048 lb)

Autor
Modellseite von Martin Bösch angelegt. Siehe bei "Änderungsvorschlag" für weitere Mitarbeit.
