D8718 /00 /02 /05

Philips - Österreich

Data
Forum
Pictures
Collections

  • Year
  • 1983/1984
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 170927

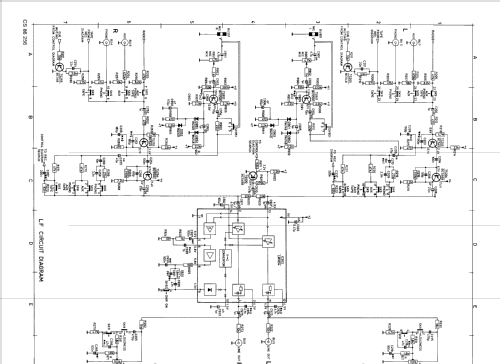

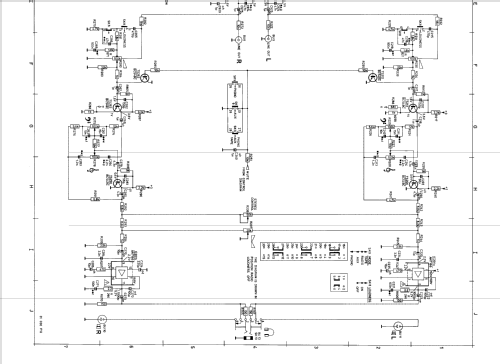

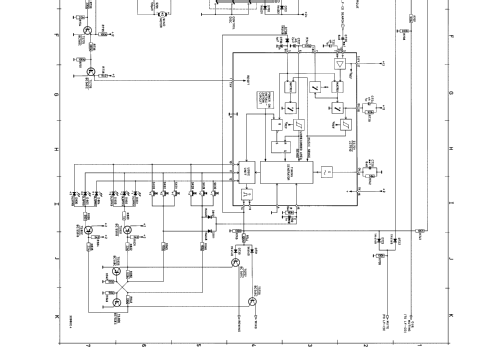

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Main principle
  • Superheterodyne (common); ZF/IF 468/10700 kHz
  • Wave bands
  • Broadcast, Long Wave, Short Wave plus FM or UHF.
  • Details
  • Cassette-Recorder or -Player
  • Power type and voltage
  • Line / Batteries (any type) / 220 / 10 x 1,5 Volt
  • Loudspeaker
  • 4 Loudspeakers
  • Power out
  • 10 W (unknown quality)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: D8718 /00 /02 /05 - Philips - Österreich
  • Shape
  • Portable set > 8 inch (also usable without mains)
  • Notes
  • /02: Have no imput for external FM antena.
    /05: mains 240V.
    Each transistor/IC type listed once.
    Stereo output: 2 x 5 W.
  • Mentioned in
  • -- Original prospect or advert (Philips Prospekt 1983)
  • Literature/Schematics (1)
  • -- Original-techn. papers.
  • Author
  • Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.
