• Country
• Netherlands

• Manufacturer / Brand
• Philips; Eindhoven (tubes international!); Miniwatt

• Year
• 1981 ?

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 344483

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 1

• Valves / Tubes
• D14-292GH/39

• Number of Transistors
• Semiconductors present.

• Semiconductors
• µPD8085 BU208 BUX86 BC549 BC547 BY208 BAX12 BAW62 BZX79 BYW29 BYX55 BRY39 BT151 1N823 H11A1 TDA1060 BY224-600

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 100-120; 220-240 V & for memory 2 x 1.5 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Metal case

• from Radiomuseum.org
• Model: Digital Storage Oscilloscope PM3310 - Philips; Eindhoven tubes

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 316 x 154 x 460 mm / 12.4 x 6.1 x 18.1 inch

• Notes

• Microprocessor controlled two channel 60 Mcs digital storage oscilloscope.

  • Pre-trigger view
  • Storage of two channels with four different "event" signals.
  • IEC-bus optional (with the aid of PM3325)
  • X-Y- Plotter output
  • Trigger delay
  • Memory back-up using 2 x 1,5 V batteries
  • Corresponds to the later, more advanced model PM3311, but has a max. sample rate of only 50 Mcs, whereas PM3311 has 250 Mcs.

  Some of the ICs used in this instrument:

  • INTEL CPU: P8085
  • INTEL EPROMs: D2716
  • MOTOROLA RAMs: MCM51L01

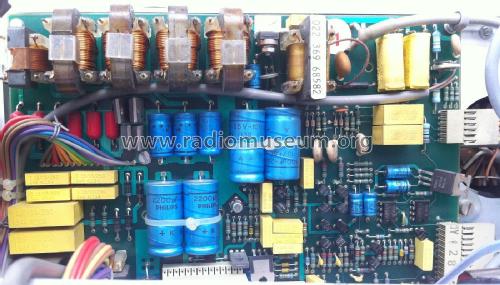

  Only transistors, thyristors and diodes that were used in the power supply unit are listed. Each type was only listed once.



• Net weight (2.2 lb = 1 kg)
• 12 kg / 26 lb 6.9 oz (26.432 lb)

• Mentioned in
• - - Manufacturers Literature

• Author
• Model page created by Harald Giese. See "Data change" for further contributors.
