Donauland 8490 /30R
Philips - Österreich
- Country
- Austria
- Manufacturer / Brand
- Philips - Österreich
- Year
- 1968 ?
- Category
- Sound/Video Recorder and/or Player
- Radiomuseum.org ID
- 252940

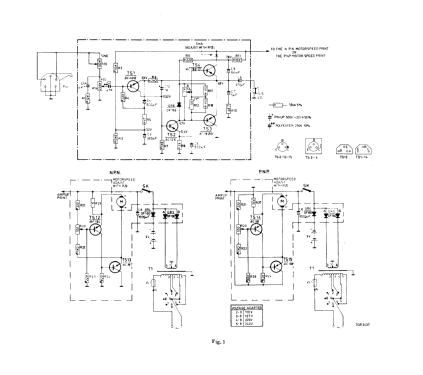

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 6
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Details
- Rec.Player+Audio.Amp+LS
- Power type and voltage
- Line / Batteries (any type) / 110; 127; 220; 240 / 6 x 1,5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Power out
- 1.2 W (unknown quality)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: Donauland 8490 /30R - Philips - Österreich
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 325 x 120 x 230 mm / 12.8 x 4.7 x 9.1 inch
- Notes
-
Phonokoffer für Batterie und Netzbetrieb.
Geschwindigkeiten: 33 / 45 / 78 U/min.
Lautstärkeregler und Klangregler, Tranistor BC408B statt BC148B.Hergestellt von Philips für die Buchgemeinschaft Donauland, siehe auch ähnliche Modelle:
Philips All Transistor 22GF210 /01B
und Philips Party 22GF210 /01L
- Net weight (2.2 lb = 1 kg)
- 2.5 kg / 5 lb 8.1 oz (5.507 lb)
- Literature/Schematics (1)
- -- Original-techn. papers.
- Author
- Model page created by Wilfried Hofmüller. See "Data change" for further contributors.
