• Country
• Sweden

• Manufacturer / Brand
• Dux Radio AB; Stockholm

• Year
• 1965

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 92911

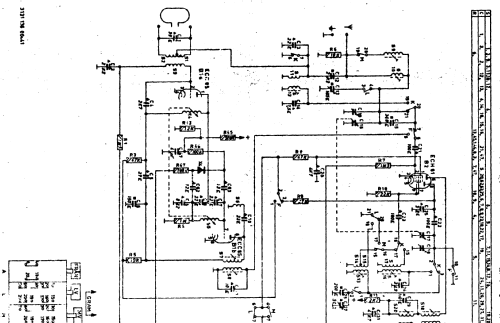

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• ECC85 ECH81 EF89 EBC81 EM84 EL86

• Main principle
• Superheterodyne (common); ZF/IF 468 kHz

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 110; 127; 220; 240 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Power out
• 2.5 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org

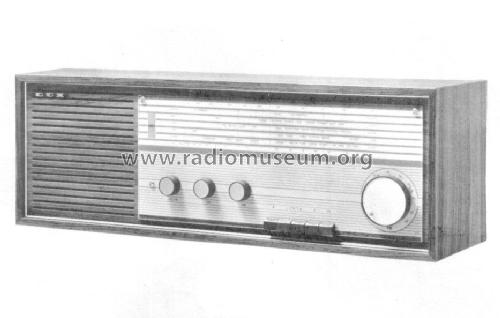

• Model: Gaby V462 - Dux Radio AB; Stockholm

• Shape
• Book-shelf unit.

• Notes
• Diodes: 2× OA79, BA102.

• Price in first year of sale
• 510.00 SEK

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Jörgen Svensson. See "Data change" for further contributors.

• Other Models

• Here you find 222 models, 179 with images and 123 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Dux Radio AB; Stockholm
