Elit 66RL570 Ch= T16A
Philips, Svenska AB, Stockholm
- Country
- Sweden
- Manufacturer / Brand
- Philips, Svenska AB, Stockholm
- Year
- 1966 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 345793
From my service documentation.

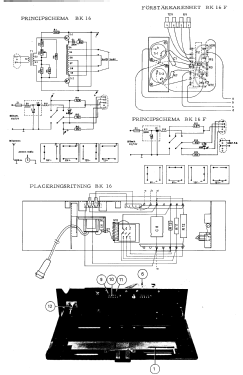

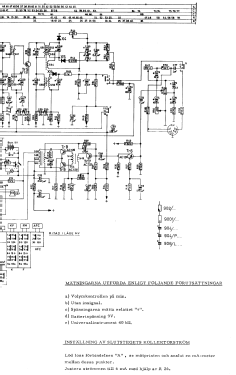

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 9
- Main principle
- Superheterodyne (common); ZF/IF 468/10850 kHz
- Wave bands
- Broadcast, Long Wave, Short Wave plus FM or UHF.
- Power type and voltage
- Batteries / addl. power jack / 6 x 1.5 / 9 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 7 inch = 17.8 cm
- Power out
- 2 W (max.)
- Material
- Wooden case
- from Radiomuseum.org
- Model: Elit 66RL570 Ch= T16A - Philips, Svenska AB, Stockholm
- Shape
- Portable set > 8 inch (also usable without mains)
- Notes
-
The radio has sockets for earphone, battery eliminator BT2, external antenna, tape recorder and car cassette BK16.
In the service documentation 2 different sets for the IF are mentioned: 452/10700 kHz and 468/10850 kHz.
Case in teak or jacaranda.
The same chassis as Dux T1661 and Conserton T6167.
