Fapesa Receptor en kit 220
Philips Argentina, FAPESA, Miniwatt tubes; Buenos Aires
- Country
- Argentina
- Manufacturer / Brand
- Philips Argentina, FAPESA, Miniwatt tubes; Buenos Aires
- Year
- 1950 ??
- Category
- Kit (Parts plus instruction) or building instructions only
- Radiomuseum.org ID
- 348533
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); 2 AF stage(s)
- Wave bands
- Broadcast and Short Wave (SW).
- Power type and voltage
- Alternating Current supply (AC) / 220 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Various materials
- from Radiomuseum.org

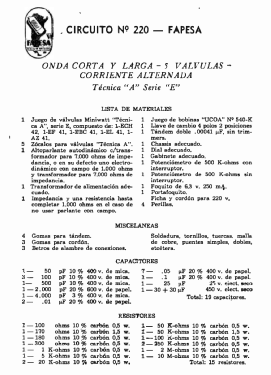

- Model: Fapesa Receptor en kit 220 - Philips Argentina, FAPESA,
- Shape
- Chassis only or for «building in»
- Notes
-
Posibilidad de instalar un altavoz con bobina de campo de 1000 ohmios.
- Mentioned in
- - - Manufacturers Literature
- Author
- Model page created by Toni Gutiérrez García. See "Data change" for further contributors.
