- Country
- Sweden
- Manufacturer / Brand
- Philips, Svenska AB, Stockholm
- Year
- 1965 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 102070

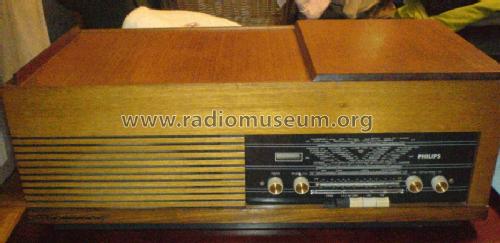

Radiogrammophone with sliding lid.
Close-up on the radio front.
The recordplayer

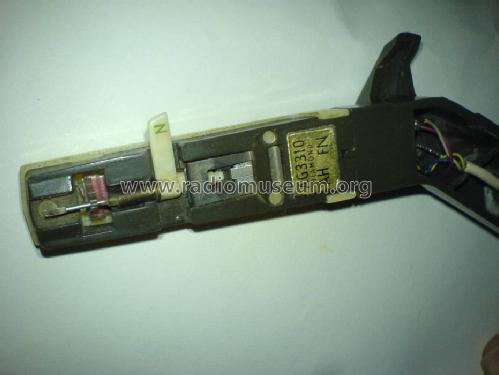

Close-up on the pickup.
The rpm selector.
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Main principle
- Superheterodyne (common); ZF/IF 468/10850 kHz
- Wave bands
- Broadcast, Long Wave, Short Wave plus FM or UHF.
- Details
- Record Player (not changer)
- Power type and voltage
- Alternating Current supply (AC) / 110; 127; 220; 240 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: H4S33A - Philips, Svenska AB, Stockholm
- Shape
- Tablemodel, Box - most often with Lid (NOT slant panel).
- Notes

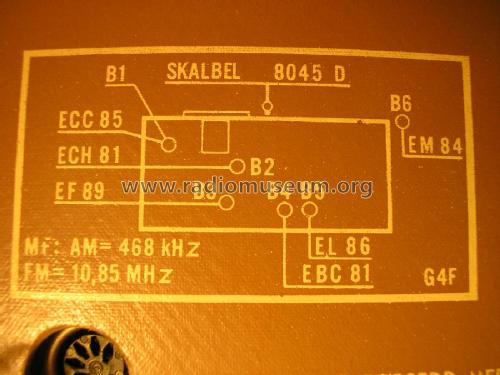

- Builtin antennas, 5-pin DIN-connector for taperecorder. Chassis is Philips G4F. Sliding lid over recordplayer.
- Source of data
- - - Data from my own collection
- Author
- Model page created by Jörgen Svensson. See "Data change" for further contributors.
