• Country
• Austria

• Manufacturer / Brand
• Philips - Österreich

• Year
• 1956/1957

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 73338

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 13

• Valves / Tubes
• ECC85 ECH81 EF89 EF89 EM34 EABC80 ECC83 UL84 UL84 UL84 UL84 EZ80 EZ80

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz

• Tuned circuits
• 6 AM circuit(s)     11 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 110; 130; 150; 220; 240 Volt

• Loudspeaker
• 3 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org
• Model: Hi-Fi Konzertanlage B8A63A - Philips - Österreich

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 635 x 285 x 275 mm / 25 x 11.2 x 10.8 inch

• Notes

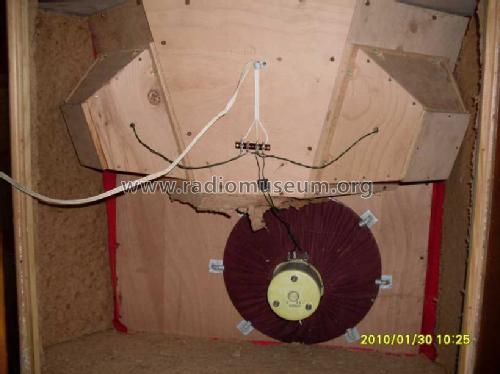

• Drei Lautsprecher in separater Schallbox mit den Maßen 925 x 800 x 300 mm. Endstufe bi-amp mono mit 4 x UL84.

• Price in first year of sale
• 7,350.00 ATS

• Source of data
• -- Original prospect or advert / Radiokatalog Band 2, Ernst Erb

• Mentioned in
• -- Original-techn. papers.

• Author
• Model page created by Wolfgang Bauer. See "Data change" for further contributors.
