HiFi-Stereo-Cassetten-Recorder N2536
Philips - Österreich
- Country
- Austria
- Manufacturer / Brand
- Philips - Österreich
- Year
- 1978
- Category
- Sound/Video Recorder and/or Player
- Radiomuseum.org ID
- 194234

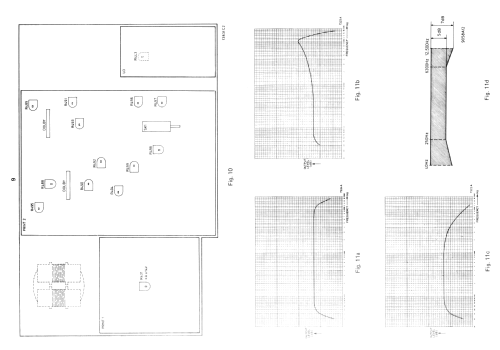

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Details
- Cassette-Recorder or -Player
- Power type and voltage
- Alternating Current supply (AC) / 220 Volt
- Loudspeaker
- - For headphones or amp.
- Material
- Various materials
- from Radiomuseum.org
- Model: HiFi-Stereo-Cassetten-Recorder N2536 - Philips - Österreich
- Dimensions (WHD)
- 342 x 90 x 245 mm / 13.5 x 3.5 x 9.6 inch
- Notes
- Zwei beleuchtete Aussteuerungsinstrumente, Anschluss für Mikrofon und Kopfhörer, Regler für getrennte Aussteuerung links/rechts für Mikrofon, Phono, Radio, Tonband, tachogeregelter Antriebsmotor.
- Net weight (2.2 lb = 1 kg)
- 2.7 kg / 5 lb 15.2 oz (5.947 lb)
- Mentioned in
- -- Original prospect or advert (Prospekt: Alle Klänge dieser Welt, Ausgabe 1978/79)
- Author
- Model page created by Günter Döring. See "Data change" for further contributors.
