HiFi-Stereo-Steuergerät RH702 22RH702 /80Z 46 Transistoren

Philips - Österreich

Data
Forum
Pictures
Collections

  • Year
  • 1971
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 79808

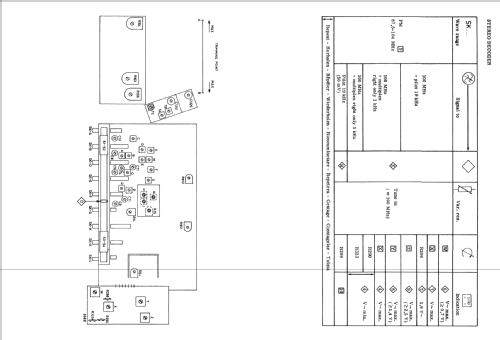

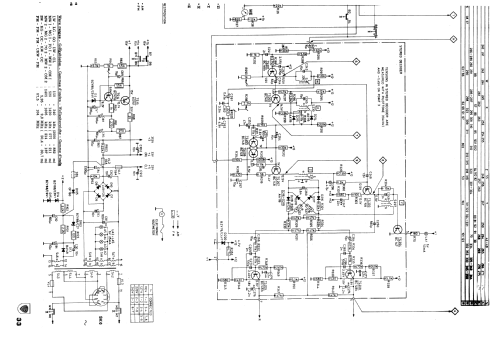

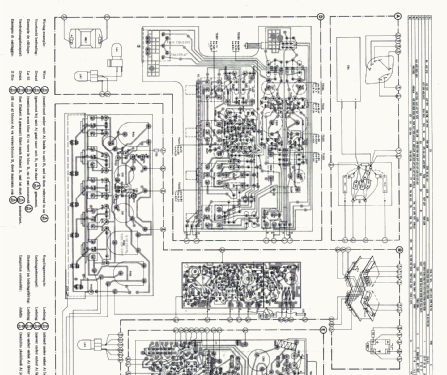

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • 46
  • Main principle
  • Superheterodyne (common); ZF/IF 452 or 460/10700 kHz
  • Wave bands
  • Broadcast, Long Wave, Short Wave plus FM or UHF.
  • Power type and voltage
  • Alternating Current supply (AC) / 110; 127; 220; 240 Volt
  • Loudspeaker
  • - This model requires external speaker(s).
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: HiFi-Stereo-Steuergerät RH702 22RH702 /80Z [46 Transistoren] - Philips - Österreich
  • Shape
  • Book-shelf unit.
  • Dimensions (WHD)
  • 565 x 110 x 215 mm / 22.2 x 4.3 x 8.5 inch
  • Notes

  • Gehäuse in Nussbaum. Zwei Mittelwellenbereiche:

    • MW1 = 520 - 1420 kHz
    • MW2 = 1405 - 1605 kHz

    Halbleiter nur einmal je Type gelistet. Die Herstellung in Österreich ist derzeit nicht belegt.

    Parallelgerät zu Horny SA5702.

  • Source of data
  • Radiokatalog Band 2, Ernst Erb
  • Literature/Schematics (1)
  • -- Original-techn. papers.
  • Author
  • Model page created by Hannes Wurnitsch. See "Data change" for further contributors.
