Jenny 170 90AL170 /00 /44

• Country
• Austria

• Manufacturer / Brand
• Philips - Österreich

• Year
• 1977–1981 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 82211

• Picture

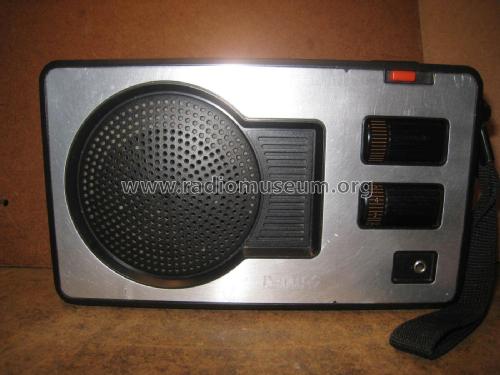

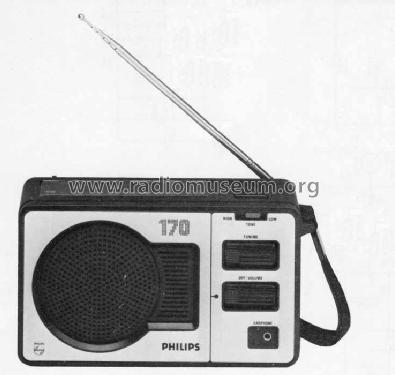

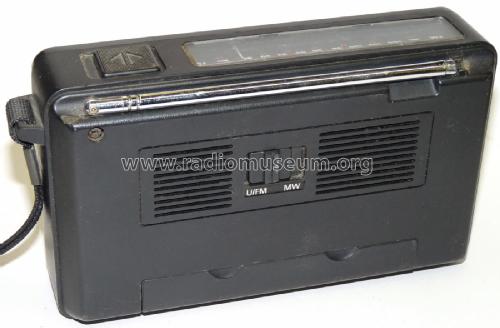

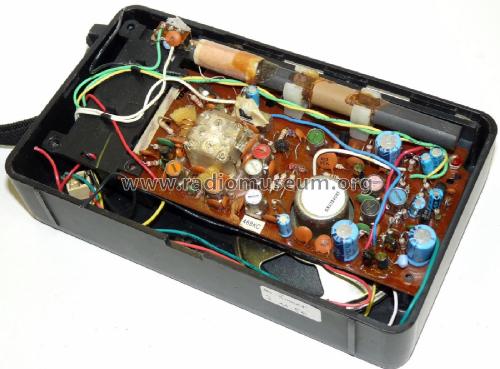

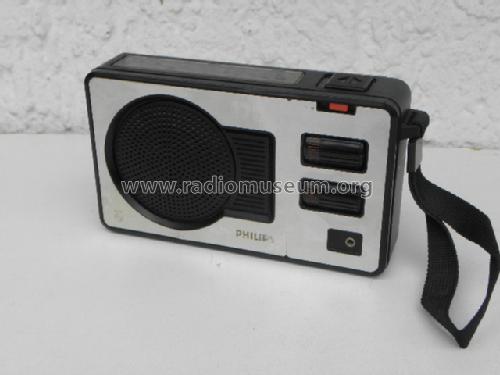

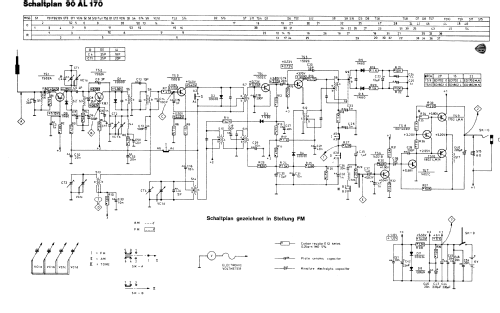

• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 10

• Semiconductors
• ED1502 ED1502 ED1502 ED1502 ED1502 ED1402 ED1402 ED1402 ED1702 ED1802 CDG00 CDG00 1N60 CDG00 1N60 1N60 CDG24 CDG24

• Main principle
• Superheterodyne (common); ZF/IF 455 or 468/10700 kHz

• Tuned circuits
• 5 AM circuit(s)     8 FM circuit(s)

• Wave bands
• Broadcast (BC) and FM or UHF.

• Power type and voltage
• Dry Batteries / AA: 4 x 1.5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 8 cm = 3.1 inch

• Power out
• 0.3 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Jenny 170 90AL170 /00 /44 - Philips - Österreich

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 184 x 106 x 49 mm / 7.2 x 4.2 x 1.9 inch

• Notes

• Siehe auch das Parallelmodell für den deutschen Markt Rex 170 90AL170

  Ausführungen:

  • /00 AM-ZF 468 kHz, FM-Bereich 87.5 - 104 MHz
  • /44 AM-ZF 455 kHz, FM-Bereich 87.5 - 108 MHz

  Made in Hong Kong.

• Net weight (2.2 lb = 1 kg)
• 0.5 kg / 1 lb 1.6 oz (1.101 lb)

• Price in first year of sale
• 58.00 DM

• Source of data
• Radiokatalog Band 2, Ernst Erb
