• Country
• Austria

• Manufacturer / Brand
• Philips - Österreich

• Year
• 1970–1972

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 80208

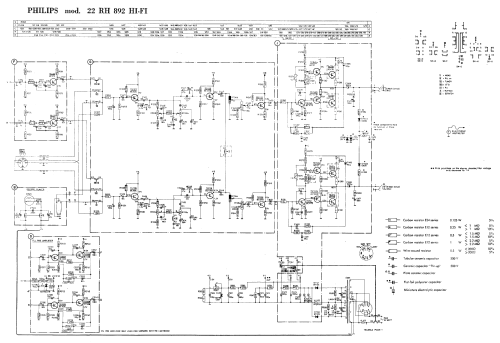

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 34

• Semiconductors
• AF121 AF125 BF195 BF194 BC147 BC107 BC177 BC178 BC109 BC149 AC127 AC132 BDY38 AA119 BA102 BA114 OA90 BZY88 BY126

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz

• Wave bands
• Broadcast, Long Wave and FM or UHF.

• Details
• Record Player (not changer); Hi-Fi equipment

• Power type and voltage
• Alternating Current supply (AC) / 110; 127; 220; 240 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 16 W (max.)

• Material
• Various materials

• from Radiomuseum.org

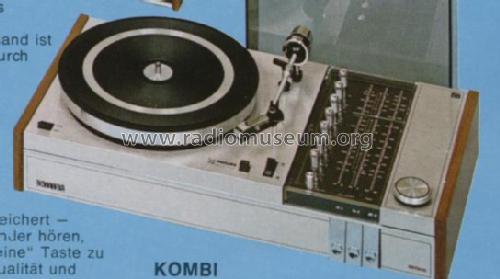

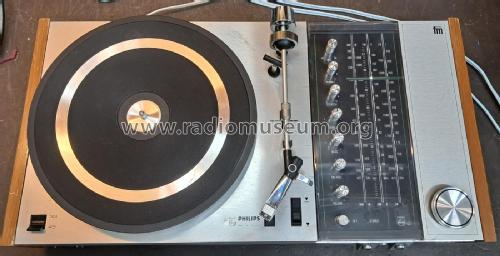

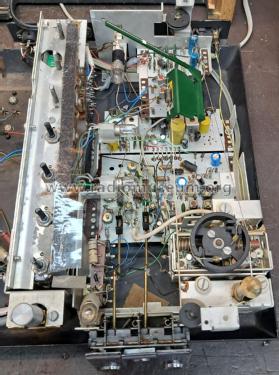

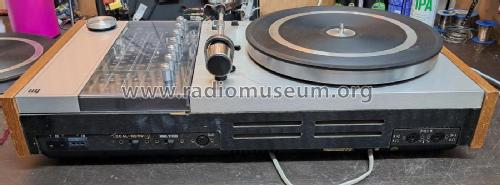

• Model: Kombi Stereo Steuergerät 22RH892 HI-FI - Philips - Österreich

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 550 x 170 x 280 mm / 21.7 x 6.7 x 11 inch

• Notes

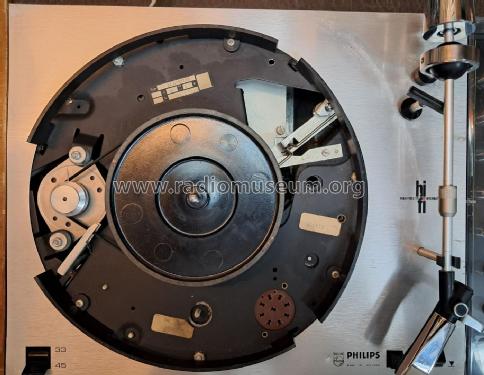

• Eingebauter HiFi-Plattenspieler Philips GC017

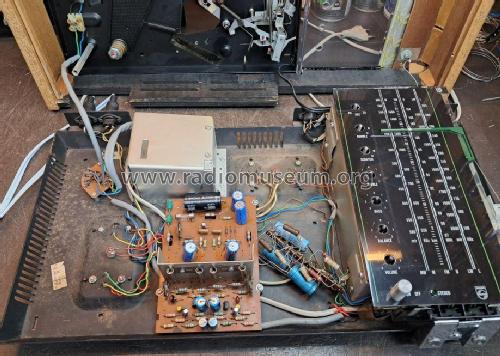

  34 Transistors and 14 Diodes all listed one per type; 1 Zener Diode 2 Rectifier diodes.

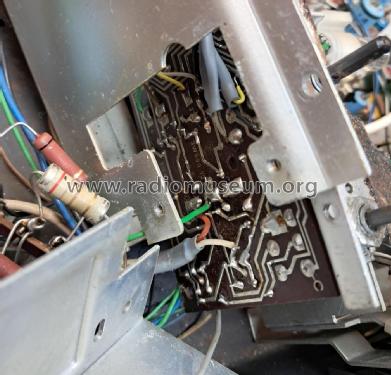

  The panel "D"  PU Preamplifier only used for versions with magnetic cartridge.

• Source of data
• -- Original-techn. papers. / Radiokatalog Band 2, Ernst Erb

• Mentioned in
• -- Schematic (Schemario Radio Autoradio Mangianastri edizioni "Il Rostro" Italy, March 1971.)

• Author
• Model page created by Hannes Wurnitsch. See "Data change" for further contributors.
