L2F53T
Philips France; Paris
- Country
- France
- Manufacturer / Brand
- Philips France; Paris
- Year
- 1966
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 126307
Nach 40 Jahren noch in Top-Form!
- Number of Transistors
- 9
- Main principle
- Superheterodyne (common); ZF/IF 455/10700 kHz
- Wave bands
- Broadcast, Long Wave and FM or UHF.
- Power type and voltage
- Dry Batteries / 2 x 4,5 & 1,5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10.5 cm = 4.1 inch
- Power out
- 0.63 W (max.)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: L2F53T - Philips France; Paris
- Dimensions (WHD)
- 258 x 147 x 71 mm / 10.2 x 5.8 x 2.8 inch
- Notes
-

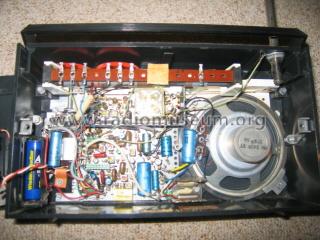

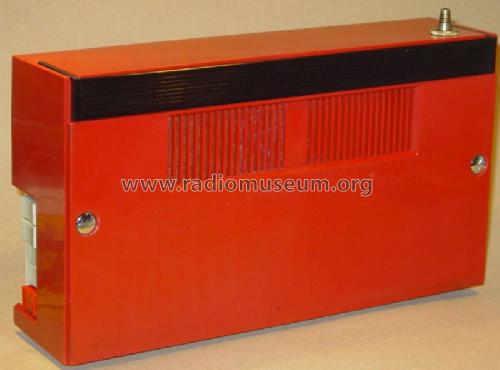

Ferritantenne 175 mm rund 10 mm mit 6 sternförmigen Rillen. Die Lautsprecherbezeichnung: PA 3409 SY 27S 66. Leiterplattenaufbau mit Minifiltern. Markante Kastenform mit massiv aufgesetzter Skalenverkleidung.
- Net weight (2.2 lb = 1 kg)
- 1.2 kg / 2 lb 10.3 oz (2.643 lb)
- Author
- Model page created by Alfred Przybilla. See "Data change" for further contributors.
