• Country
• France

• Manufacturer / Brand
• Philips France; Paris

• Year
• 1962/1963

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 140643

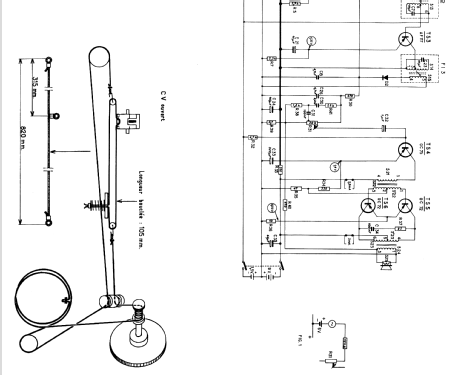

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 6

• Semiconductors
• AF117 AF117 AF117 OC75 OC72 OC72 OA79 OA79

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• Dry Batteries / 2 x 4.5 & 1.5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 11 cm = 4.3 inch

• Power out
• 0.23 W (unknown quality)

• Material
• Leather / canvas / plastic - over other material

• from Radiomuseum.org
• Model: Ecodyne L3F31T /00D /00G /00L - Philips France; Paris

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 265 x 145 x 70 mm / 10.4 x 5.7 x 2.8 inch

• Notes

• 2 gammes d'ondes : PO de 185 à 572 m, et GO de 1150 à 1950 m. Cadre ferroxcube de 20 cm. Prise antenne auto. HP Z = 2 ohms.

  Alimentation : 2 piles de 4.5 V + 1 pile de polarisation 1.5 V.

  Coffret en deux pièces polystyrène, arrière gainé. Poignée gainée grège. 3 exécutions :

  • 00D : arrière grège, façade blanc, grille ardoise, cadran alu naturel
  • 00G : arrière gris, façade ardoise, grille blanc, cadran turquoise
  • 00S : arrière rouge, façade blanc, grille gris perle, cadran gris

• Net weight (2.2 lb = 1 kg)
• 1.5 kg / 3 lb 4.9 oz (3.304 lb)

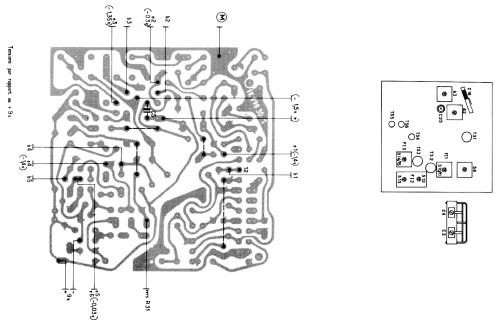

• Literature/Schematics (1)
• Radio Constructeur et Dépanneur (Sept. 1963)

• Literature/Schematics (4)
• -- Original-techn. papers.

• Author
• Model page created by Raynal Aufils. See "Data change" for further contributors.

• Other Models

• Here you find 617 models, 555 with images and 335 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Philips France; Paris
