• Country
• Sweden

• Manufacturer / Brand
• Philips, Svenska AB, Stockholm

• Year
• 1961

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 222435

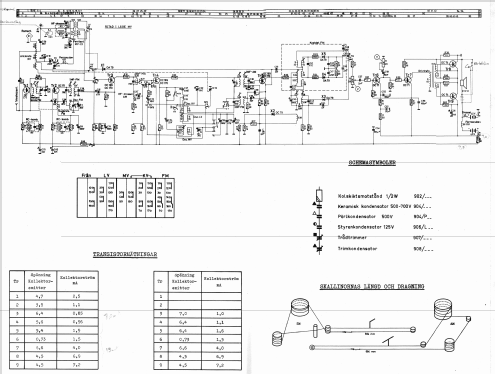

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 9

• Semiconductors
• OC171 OC171 OC169 or. OC170 OC169 or. OC170 OC169 or. OC170 OC71 OC71 OC74 OC74 OA79 OA79 OA79 OA79

• Main principle
• Superhet with RF-stage; ZF/IF 455/6750 kHz

• Tuned circuits
• 6 AM circuit(s)     8 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Dry Batteries / 2 x 4.5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Power out
• 0.6 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org

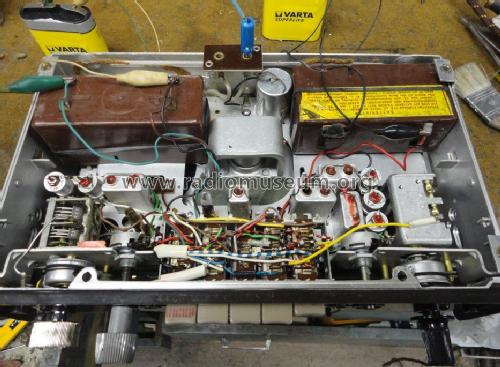

• Model: L4S08T Ch= T6B - Philips, Svenska AB, Stockholm

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 330 x 200 x 105 mm / 13 x 7.9 x 4.1 inch

• Notes

• Shares the same chassis T6B with Dux B612T and Concerton B1721T.

• Literature/Schematics (1)

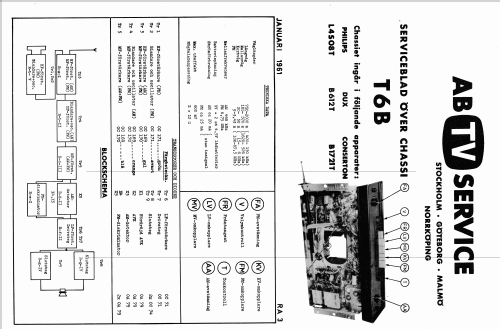

• -- Original-techn. papers.

• Author
• Model page created by Jan-Ake Ahl. See "Data change" for further contributors.

• Other Models

• Here you find 240 models, 220 with images and 109 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Philips, Svenska AB, Stockholm
