• Country
• Sweden

• Manufacturer / Brand
• Philips, Svenska AB, Stockholm

• Year
• 1965/1966

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 169291

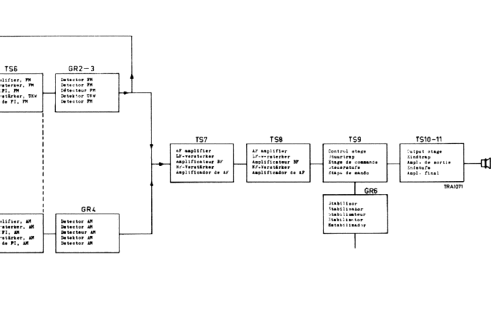

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 11

• Semiconductors
• AF102 AF115 AF116 AF116 AF116 AF116 OC71 OC71 OC75 AC128 AC128 OA79 BA102

• Main principle
• Superheterodyne (common); ZF/IF 452/10700 kHz

• Tuned circuits
• 7 AM circuit(s)     11 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Dry Batteries / 4 x 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Power out
• 1.2 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

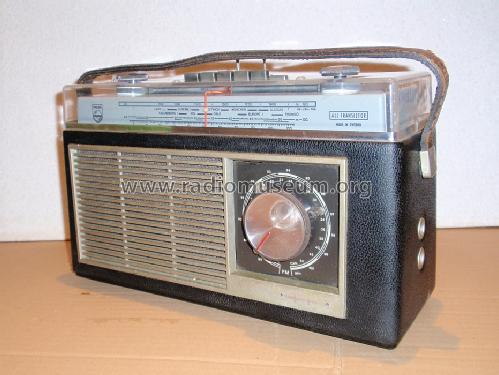

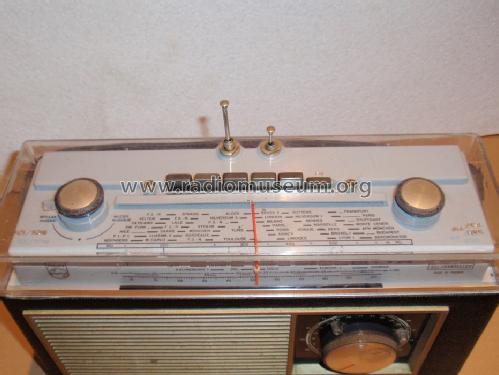

• Model: L5S24-T - Philips, Svenska AB, Stockholm

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 332 x 190 x 117 mm / 13.1 x 7.5 x 4.6 inch

• Notes
• Philips Svenska L5S24T;
  Produced in three versions: ./00L, ./00R, ./00X.

• Source of data
• - - Manufacturers Literature

• Author
• Model page created by Michele Dal Corso. See "Data change" for further contributors.
