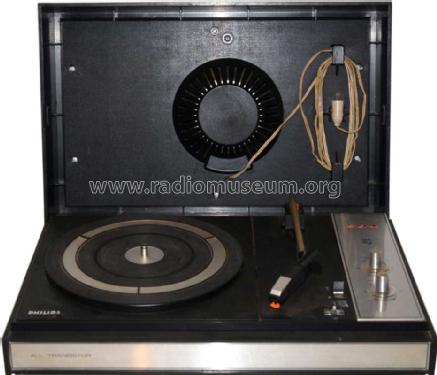

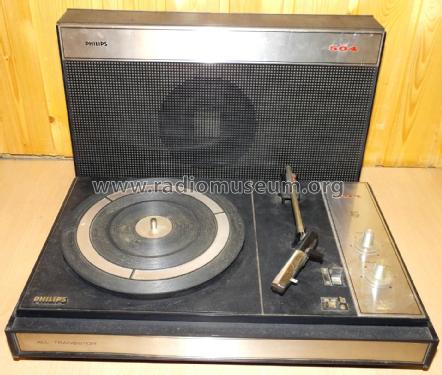

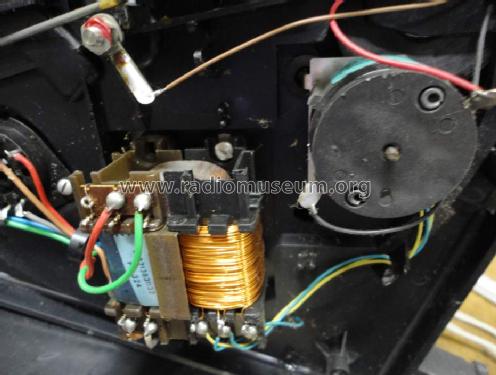

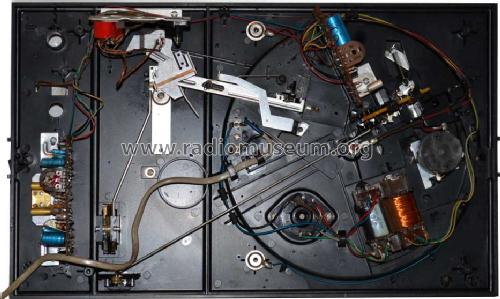

Luxus Cocktail 22GF504/03P

• Country
• Austria

• Manufacturer / Brand
• Philips - Österreich

• Year
• 1971/1972

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 98356

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 6

• Semiconductors
• BC148 BC158 AC187 AC188 AC127 AC128

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Rec.Player+Audio.Amp+LS

• Power type and voltage

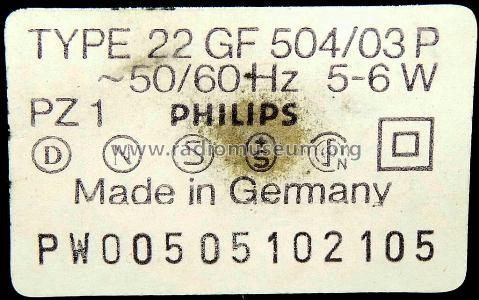

• Line / Batteries (any type) / 110-240 / 6 x 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 15 cm = 5.9 inch

• Power out
• 2.5 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Luxus Cocktail 22GF504/03P - Philips - Österreich

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 400 x 140 x 200 mm / 15.7 x 5.5 x 7.9 inch

• Notes

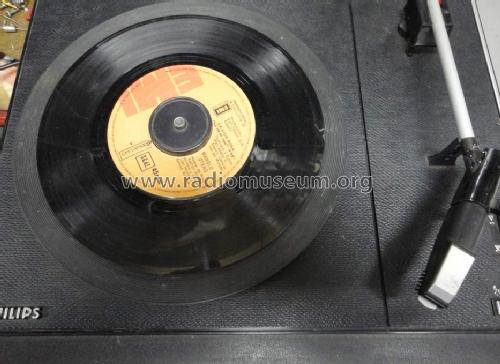

• Tragbarer Mono-Plattenspieler mit 3 Geschwindigkeiten (33/45/78 UpM). Anschlußmöglichkeit für Tonband über Din 5-pol Buchse und ext. Lautsprecher über Buchse LB2

• Net weight (2.2 lb = 1 kg)
• 3.8 kg / 8 lb 5.9 oz (8.37 lb)

• Mentioned in
• -- Original prospect or advert

• Author
• Model page created by Hannes Wurnitsch. See "Data change" for further contributors.
