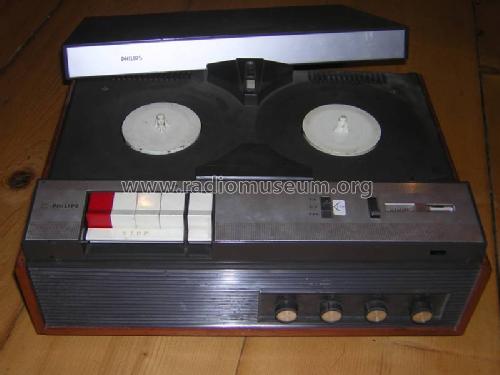

Maestro 26 EL3558A/30
Philips - Österreich
- Country
- Austria
- Manufacturer / Brand
- Philips - Österreich
- Year
- 1965
- Category
- Sound/Video Recorder and/or Player
- Radiomuseum.org ID
- 79578
Sammlung Albert Weiss
Sammlung Albert Weiss
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 11
- Semiconductors
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Details
- Tape Recorder
- Power type and voltage
- Alternating Current supply (AC) / 110, 127, 220, 240 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: Maestro 26 EL3558A/30 - Philips - Österreich
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 415 x 152 x 300 mm / 16.3 x 6 x 11.8 inch
- Notes
-
Bandgeschw. 4,75 9,5 cm/sec
Parallelgerät zum Belgischen Modell: EL3578 /00
- Net weight (2.2 lb = 1 kg)
- 8 kg / 17 lb 9.9 oz (17.621 lb)
- Source of data
- Radiokatalog Band 2, Ernst Erb
- Literature/Schematics (1)
- -- Original-techn. papers.
- Author
- Model page created by Hannes Wurnitsch. See "Data change" for further contributors.
