Maestro 300 EL3516G/80
Philips - Österreich
- Country
- Austria
- Manufacturer / Brand
- Philips - Österreich
- Year
- 1958
- Category
- Sound/Video Recorder and/or Player
- Radiomuseum.org ID
- 92690
Q: Philips, Tonband-Prospekt '58
Q: Philips, Tonband-Prospekt '58

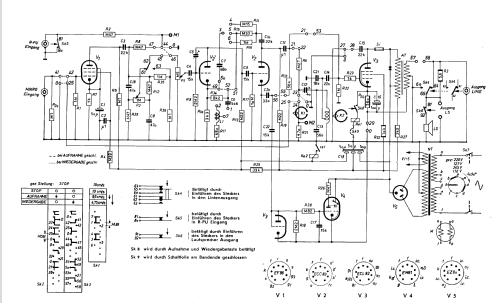

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Details
- Tape Recorder
- Power type and voltage
- Alternating Current supply (AC) / 110; 127; 220; 245 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 13 cm = 5.1 inch
- Power out
- 2.5 W (unknown quality)
- Material
- Leather / canvas / plastic - over other material
- from Radiomuseum.org
- Model: Maestro 300 EL3516G/80 - Philips - Österreich
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 400 x 205 x 330 mm / 15.7 x 8.1 x 13 inch
- Net weight (2.2 lb = 1 kg)
- 13.5 kg / 29 lb 11.8 oz (29.736 lb)
- Source of data
- -- Original-techn. papers.
- Author
- Model page created by Hannes Wurnitsch. See "Data change" for further contributors.
