Maestro 300 EL3538A /80

Philips - Österreich

Data

Forum

Pictures

Collections

Country
Austria

Manufacturer / Brand
Philips - Österreich

Year
1959

Category
Sound/Video Recorder and/or Player

Radiomuseum.org ID
78127

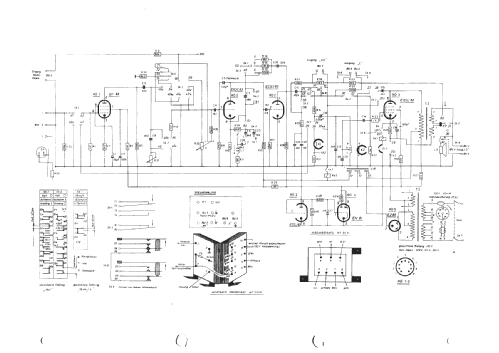

Schematics

Maestro 300 EL3538A /80; Philips - Österreich (ID = 106755) R-Player — Philips - Österreich Maestro 300 EL3538A /80 (3)

Maestro 300 EL3538A /80; Philips - Österreich (ID = 106756) R-Player — Philips - Österreich Maestro 300 EL3538A /80 (3)

Maestro 300 EL3538A /80; Philips - Österreich (ID = 106757) R-Player — Philips - Österreich Maestro 300 EL3538A /80 (3)

Maestro 300 EL3538A /80; Philips - Österreich (ID = 106758) R-Player — Philips - Österreich Maestro 300 EL3538A /80 (3)

Maestro 300 EL3538A /80; Philips - Österreich (ID = 106759) R-Player — Philips - Österreich Maestro 300 EL3538A /80 (3)

Maestro 300 EL3538A /80; Philips - Österreich (ID = 106752) R-Player — Philips - Österreich Maestro 300 EL3538A /80 (1)

Maestro 300 EL3538A /80; Philips - Österreich (ID = 106753) R-Player — Philips - Österreich Maestro 300 EL3538A /80 (1)

Maestro 300 EL3538A /80; Philips - Österreich (ID = 106754) R-Player — Philips - Österreich Maestro 300 EL3538A /80 (1)

Maestro 300 EL3538A /80; Philips - Österreich (ID = 600460) R-Player — Philips - Österreich Maestro 300 EL3538A /80 (1)

Maestro 300 EL3538A /80; Philips - Österreich (ID = 656619) R-Player — Philips - Österreich Maestro 300 EL3538A /80 (2)

Maestro 300 EL3538A /80; Philips - Österreich (ID = 656621) R-Player — Philips - Österreich Maestro 300 EL3538A /80 (2)

Maestro 300 EL3538A /80; Philips - Österreich (ID = 656625) R-Player — Philips - Österreich Maestro 300 EL3538A /80 (2)

Maestro 300 EL3538A /80; Philips - Österreich (ID = 656627) R-Player — Philips - Österreich Maestro 300 EL3538A /80 (2)

Maestro 300 EL3538A /80; Philips - Österreich (ID = 656628) R-Player — Philips - Österreich Maestro 300 EL3538A /80 (2)

Maestro 300 EL3538A /80; Philips - Österreich (ID = 656630) R-Player — Philips - Österreich Maestro 300 EL3538A /80 (2)

Maestro 300 EL3538A /80; Philips - Österreich (ID = 656631) R-Player — Philips - Österreich Maestro 300 EL3538A /80 (2)

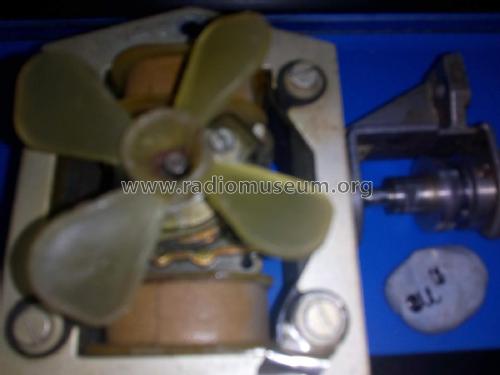

Maestro 300 EL3538A /80; Philips - Österreich (ID = 2387296) R-Player — Philips - Österreich Maestro 300 EL3538A /80 (1)

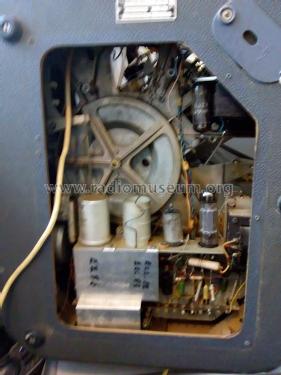

Maestro 300 EL3538A /80; Philips - Österreich (ID = 2387298) R-Player — Philips - Österreich Maestro 300 EL3538A /80 (1)
With Serial number 31029

Click on the schematic thumbnail to request the schematic as a free document.

Technical Specifications

Number of Tubes
5

Valves / Tubes
EF86 ECC83 ECL82 EZ80 EM81

Main principle
Audio-Amplification

Wave bands
- without

Details
Tape Recorder

Power type and voltage
Alternating Current supply (AC) / 110, 127, 220, 245 Volt

Loudspeaker
Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

Power out
2.5 W (unknown quality)

Material
Leather / canvas / plastic - over other material

from Radiomuseum.org
Model: Maestro 300 EL3538A /80 - Philips - Österreich

Shape
Tablemodel with Push Buttons.

Dimensions (WHD)
415 x 170 x 350 mm / 16.3 x 6.7 x 13.8 inch

Notes

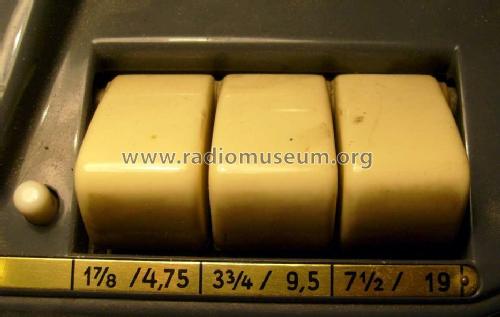

2 Spur Tonbandgerät. 3 Geschwindigkeiten: 4,75 / 9,5 und 19cm/sec.
Parallelgerät zum Horny WM4302A

Net weight (2.2 lb = 1 kg)
13.5 kg / 29 lb 11.8 oz (29.736 lb)

Price in first year of sale
3,940.00 öS

External source of data
Eigengerät

Source of data
Radiokatalog Band 2, Ernst Erb

Literature/Schematics (1)
-- Original-techn. papers.

Author
Model page created by Wolfgang Bauer. See "Data change" for further contributors.
