• Country
• Austria

• Manufacturer / Brand
• Philips - Österreich

• Year
• 1969/1970

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 83403

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 22

• Semiconductors

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Tape Recorder

• Power type and voltage
• Alternating Current supply (AC) / 110; 127; 220; 245 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Material
• Various materials

• from Radiomuseum.org
• Model: Maestro 4408 N4408/58 - Philips - Österreich

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 500 x 345 x 230 mm / 19.7 x 13.6 x 9.1 inch

• Notes
• Vollstereo - Tonbandgerät für Vertikal- und Horizontal - Betrieb
  Bandgeschwindigkeiten: 4,75 - 9,5 -19 cm/s.
  Maximale Spulengröße 18cm.

• Net weight (2.2 lb = 1 kg)
• 13 kg / 28 lb 10.1 oz (28.634 lb)

• Source of data
• Radiokatalog Band 2, Ernst Erb

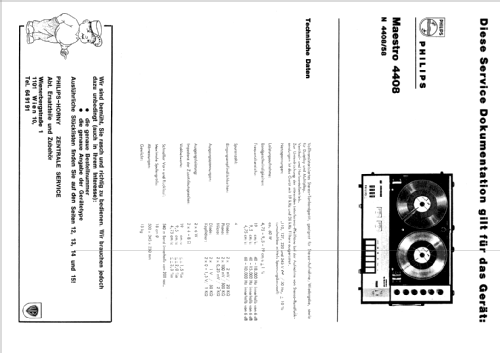

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Hannes Wurnitsch. See "Data change" for further contributors.
