• Country
• Austria

• Manufacturer / Brand
• Philips - Österreich

• Year
• 1962

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 79246

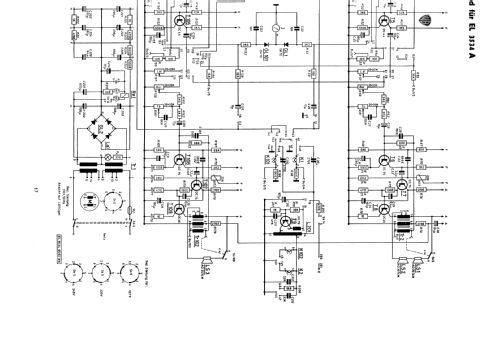

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 17

• Semiconductors

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Tape Recorder

• Power type and voltage
• Alternating Current supply (AC) / 110, 127, 220, 245 Volt

• Loudspeaker
• 3 Loudspeakers

• Material
• Leather / canvas / plastic - over other material

• from Radiomuseum.org
• Model: Maestro 50 EL3534A/30A - Philips - Österreich

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 445 x 175 x 335 mm / 17.5 x 6.9 x 13.2 inch

• Notes

• Koffer-Tonbandgerät. Bandgeschw. 2,4 4,75 9,5 19 cm/sec

  ---

  Registratore "portatile" Stereo con i relativi 2 altoparlanti, uno dei quali nel coperchio. Possibilità di funzionare a 4 piste mono. Con nastri da 7", ultra slim, alla più bassa velocità, 2,4 cm/sec si può arrivare a 24 ore di registrazione mono sulle 4 piste, per bobina.

• Net weight (2.2 lb = 1 kg)
• 16 kg / 35 lb 3.9 oz (35.242 lb)

• Price in first year of sale
• 6,790.00 ATS

• Source of data
• -- Original prospect or advert / Radiokatalog Band 2, Ernst Erb

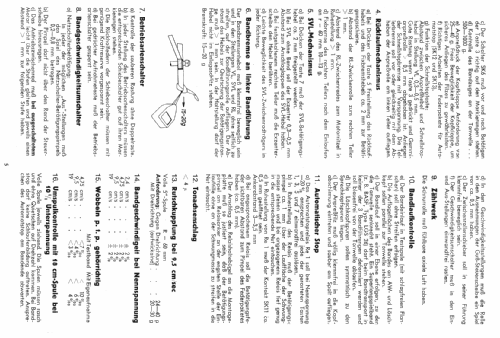

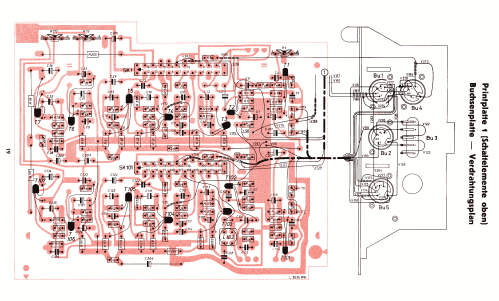

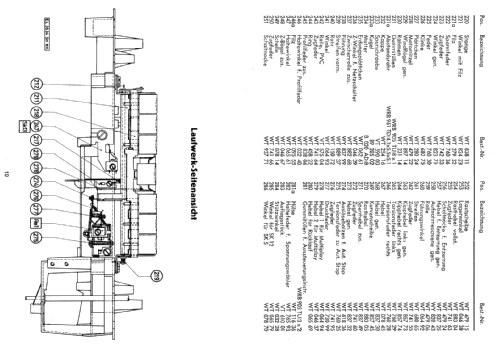

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Hannes Wurnitsch. See "Data change" for further contributors.
