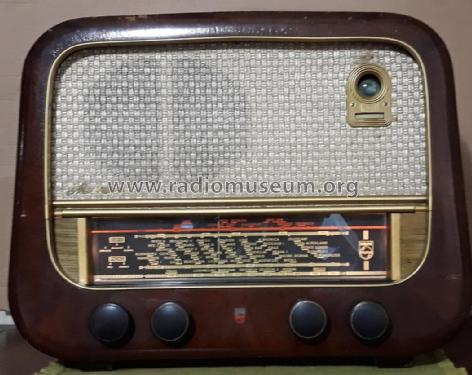

Matinée 54 BA543A ECC85
Philips - Österreich
- Country
- Austria
- Manufacturer / Brand
- Philips - Österreich
- Year
- 1954
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 72636
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 7
- Main principle
- Superheterodyne (common); ZF/IF 458,5/10700 kHz
- Wave bands
- Broadcast, Long Wave, Short Wave plus FM or UHF.
- Power type and voltage
- Alternating Current supply (AC) / 110; 130; 150; 220; 240 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: Matinée 54 BA543A [ECC85] - Philips - Österreich
- Shape
- Tablemodel with Push Buttons.
- Dimensions (WHD)
- 470 x 370 x 250 mm / 18.5 x 14.6 x 9.8 inch
- Notes
-
Parallelgerät zum Hornyphon Lord 54 W564A.
- Source of data
- Radiokatalog Band 2, Ernst Erb
- Literature/Schematics (1)
- -- Original-techn. papers.
- Author
- Model page created by Bernhard Sacherer. See "Data change" for further contributors.
