Moving Sound AW7192 /00 /00S /05 /05S
Philips - Österreich
- Country
- Austria
- Manufacturer / Brand
- Philips - Österreich
- Year
- 1989
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 174743

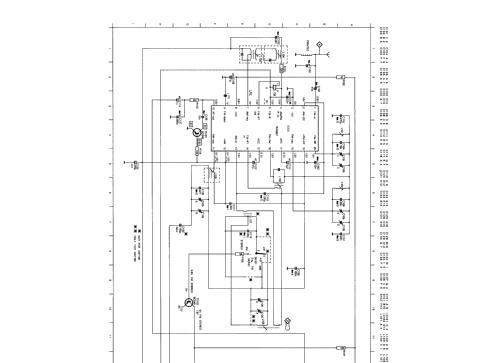

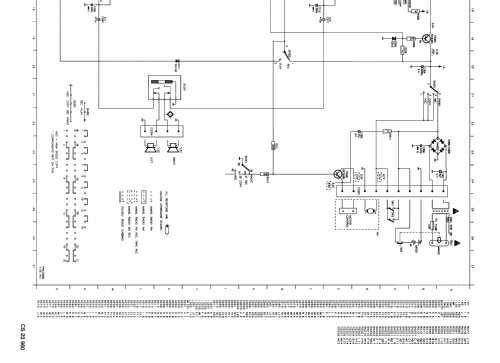

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 11
- Semiconductors
- BC548 BC548 BC548 BC548 BC558 BC548 BC548 BC548 BC548 BC548 BC548 AN7312 AN7411 TA7769 TEA5591 1N4002 1N4148 BZX79
- Main principle
- Superheterodyne (common); ZF/IF 468/10700 kHz
- Wave bands
- Broadcast, Long Wave and FM or UHF.
- Details
- Cassette-Recorder or -Player
- Power type and voltage
- Line / Batteries (any type) / 220; 240 / R20: 6 x 1,5 Volt
- Loudspeaker
- 2 Loudspeakers / Ø 10 cm = 3.9 inch
- Power out
- 4 W (unknown quality)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: Moving Sound AW7192 /00 /00S /05 /05S - Philips - Österreich
- Shape
- Design Radio or Novelty / Gadget - fancy or unusual shape.
- Dimensions (WHD)
- 515 x 190 x 150 mm / 20.3 x 7.5 x 5.9 inch
- Notes
- Typische (kleine) Boom-Box, Lautsprecher seitlich, Rohrform.
- Net weight (2.2 lb = 1 kg)
- 2.6 kg / 5 lb 11.6 oz (5.727 lb)
- Literature/Schematics (1)
- -- Original-techn. papers.
- Author
- Model page created by Boris Witke † 9.2024. See "Data change" for further contributors.
